Alfa Laval SolidC UltraPure kreiselpumpe für die pharmazeutische Produktion

Alfa Laval SolidC UltraPure Centrifugal Pump

The Alfa Laval SolidC UltraPure pharmaceutical centrifugal pump delivers exceptional performance and reliability for your high-purity fluid transfer applications. Specifically engineered to meet the stringent demands of biotechnology and pharmaceutical industries, this pump combines hygienic design with cost-effective operation to ensure contamination safety remains paramount. With its full material traceability, USP Class VI elastomers, and comprehensive Q-Doc package, the SolidC UltraPure provides the documentation and validation support critical to regulated manufacturing environments. The semi-open impeller design with specialized vane geometry enhances cleanability while minimizing wear on shaft seals and bearings, making this pump an excellent value proposition for high-purity processing.

Get a quote

How Pharmaceutical Centrifugal Pumps Ensure Product Safety

The Alfa Laval SolidC UltraPure centrifugal pump stands apart from standard process pumps through its specialized design for pharmaceutical and biotechnology applications. Every media-contacting component—including the pump casing, impeller, impeller nut, and backplate—is manufactured from W. 1.4404 (AISI 316L) stainless steel with complete material traceability according to EN 10204 3.1 certification standards. This traceability is essential for validation in regulated environments and provides the documentation necessary for Good Manufacturing Practice compliance.

High-Purity Pump Design Features

The semi-open impeller incorporates a special vane design with balance holes that serve multiple critical functions. This geometry enhances circulation around the shaft seal while simultaneously reducing axial forces during operation. The result is maximized cleanability alongside minimized wear on both the shaft seal and motor bearings, extending service life while maintaining hygienic performance. The pump's stainless steel shroud protects the motor from process area conditions, while four adjustable stainless steel legs provide stable support for the complete unit.

USP Class VI Compliant Materials for Biotechnology Applications

All product-wetted elastomers in the SolidC UltraPure comply with USP Class VI, 121°C Chapter 88, and Chapter 87 requirements. This certification verifies that the materials have passed rigorous biocompatibility testing, making them suitable for the most demanding pharmaceutical and biotechnology applications where product purity and human safety are non-negotiable. The standard configuration includes a single mechanical shaft seal, though a single flushed mechanical seal option is also available for applications requiring additional protection against product ingress.

Documentation and Validation Support for Regulated Industries

Every SolidC UltraPure pump comes with Alfa Laval's comprehensive Q-Doc package, developed in line with Good Documentation Practices (GDP). This documentation suite supports smooth qualification, validation, and process control—critical requirements in pharmaceutical manufacturing environments. The Q-Doc package provides the paper trail needed for regulatory compliance and simplifies the often complex validation process that pharmaceutical equipment must undergo before production use.

Technical Details

  • Product wetted steel parts: W. 1.4404 (AISI 316L and 329L) with material traceability 3.1 according to EN 10204
  • Other steel parts: Stainless steel
  • Product wetted elastomers: EPDM - USP Class VI, 121°C / 249.8°F. Chapter 88, and Chapter 87
  • Temperature range: -10°C to +120°C / +14°F to +248°F (EPDM)
  • Maximum inlet pressure: 400 kPa / 4 bar / 58 psi (SolidC UltraPure 1 to 4)
  • Flush media temperature: Maximum 70°C / 158°F
  • Water pressure inlet (flushed shaft seal): Maximum 1 bar / 14.5 psi
  • Water consumption (flushed shaft seal): 0.25-0.5 l/min / 4-8 USGPH
  • Seal connection size: ⅛" (SolidC UltraPure 1 to 4)
  • Models available: SolidC-1 UltraPure, SolidC-2 UltraPure, SolidC-3 UltraPure, SolidC-4 UltraPure

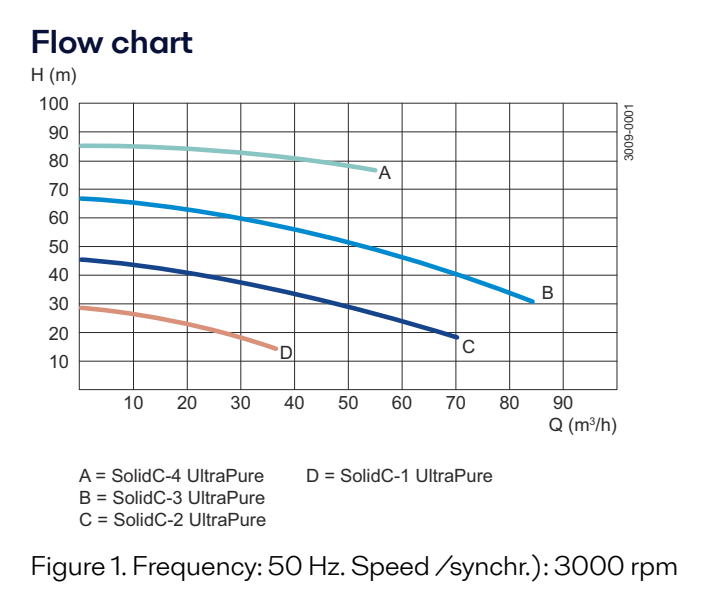

Alfa Laval SoldiC Ultrapure Centrifugal pump Flowchart

Options and Configurations

  • Single flushed mechanical shaft seal for applications requiring additional protection
  • Passivation and electropolishing treatments for enhanced corrosion resistance
  • Impeller with reduced diameter to match specific flow requirements
  • Motors for alternative voltage and/or frequency specifications
  • Half speed motor option for gentle product handling
  • Horizontal drain connection configuration
  • No drain option available for specialized installations
  • Product wetted surface finish mechanically polished to Ra ≤ 0.8 μm
  • Product wetted surface finish electropolished to Ra ≤ 0.4 μm for high-purity biotechnology applications
  • Alternative product wetted elastomers in FPM or FEP materials
  • Hydrostatic testing with certificate for validation requirements
  • Surface finish measurement with certificate for regulatory documentation
  • Outlet orientation options: 0°, 90° or 270° positioning

Motor Details

  • Foot-flanged motor according to the IEC metric standard
  • 2 poles = 3000/3600 rpm at 50/60 Hz
  • 4 poles = 1500/1800 rpm at 50/60 Hz
  • IP 55 (with drain hole with labyrinth plug)
  • Insulation class F
  • Motor sizes (50Hz): 1.5-22 kW
  • Motor sizes (60Hz): 1.5-22 kW
  • Speed range (2 poles): 900-4000 rpm
  • Speed range (4 poles): 900-2200 rpm
  • Available IEC frame sizes: IEC90, IEC100, IEC112, IEC132, IEC160

Pharmaceutical

Explore all applications

Biotechnology
Tanks and stainless steel tubes and pumps in an industrial setting.

Industries

The Alfa Laval SolidC UltraPure pharmaceutical centrifugal pump serves the demanding needs of regulated manufacturing environments where product purity is essential. Primarily designed for pharmaceutical production and biotechnology processing facilities, this pump provides the material traceability and documentation required for validated processes. The biotech and pharmaceutical manufacturing industries rely on this equipment's hygienic design and compliance with stringent regulatory standards for critical fluid transfer applications.

Alfa Laval Sensing and Control Think Top V50 and V70

Advanced Sensing and Control for Process Optimisation

Integrating Alfa Laval ThinkTop V50 and V70 units into your valve clusters delivers maximum uptime and significant resource savings. Their 360° LED status indication gives operators real-time flow path monitoring from any angle.

  • Resource savings: Pulse and Burst SeatClean reduce CIP fluid consumption by up to 95%.
  • Fast setup: Auto-Setup and Live-Setup cut commissioning time by up to 90%.
  • Durable: IP69K rated, -10°C to +60°C, Nylon PA12 and 1.4301 stainless steel.
  • Easy integration: Supports 24VDC PNP, AS-Interface, and IO-Link. MTTF of 224 years.
  • Universal fit: Directly interchangeable with ThinkTop Classic; fits all Alfa Laval hygienic actuators.

Ready to optimise your CIP return and process flows?
