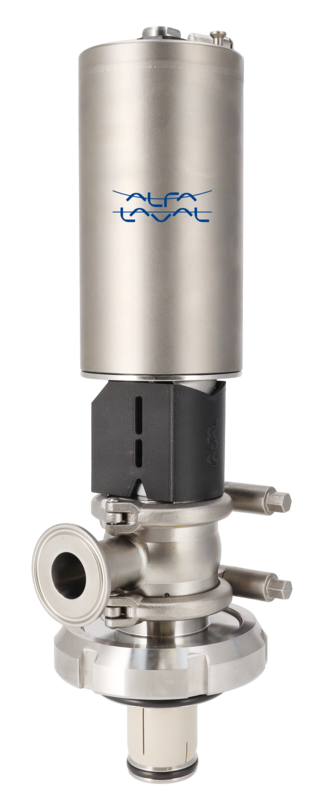

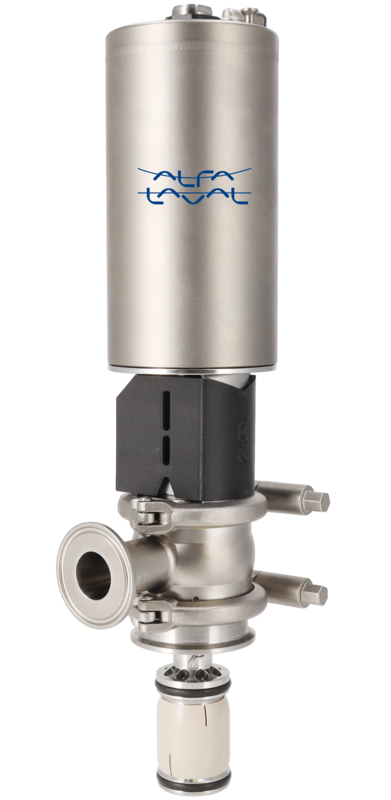

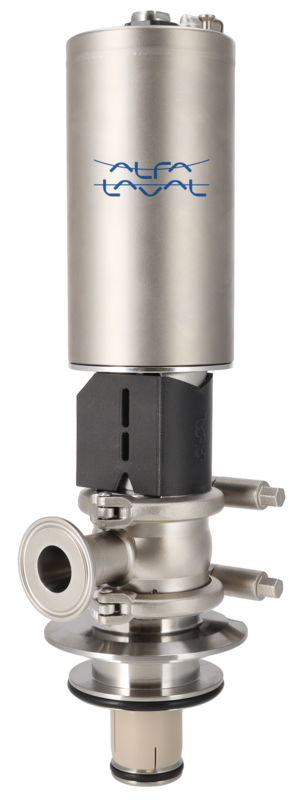

The Alfa Laval Free Rotating Retractor is a retractable CIP cleaning device built for hygienic process environments where incomplete cleaning is not an option. Fixed spray systems have a structural limitation: they project cleaning liquid in set patterns that cannot adapt to vessel geometry, leaving shadow areas — recesses, baffles, internal fittings — either poorly covered or requiring supplementary cleaning steps to address. The Free Rotating Retractor solves this by combining continuous rotational spray coverage with a body that withdraws completely from the process space between cycles.

Design and construction

The Free Rotating Retractor is built on the established engineering platform of the Alfa Laval SSV valve and the SaniMidget SB series — a modular, versatile architecture with a documented track record across hygienic processing applications. That shared lineage matters in practice: spare parts, maintenance procedures, and engineering familiarity carry across equipment families, reducing the learning curve for maintenance teams already working with Alfa Laval products.

Material selection for the product-wetted components follows the requirements of cleaning media environments. AISI 316 stainless steel is the standard for corrosion resistance against the alkaline and acid-based agents used in CIP applications. The inside surface is finished to a high standard which supports effective spray cleaning and prevents residues from adhering to surface roughness between cycles. Wetted elastomers are EPDM, chosen for compatibility with the chemical agents typical in food and beverage CIP, and all wetted polymers and elastomers are food-compliant under both FDA and EU requirements.

Performance and resource efficiency

Against static spray ball systems, the Free Rotating Retractor delivers up to 35% savings in cleaning media and water per CIP cycle. That figure reflects a fundamental difference in how the two approaches work. A static spray ball emits liquid from fixed orifices; coverage depends entirely on the spray ball's position relative to the vessel geometry. The Free Rotating Retractor rotates throughout the cleaning cycle, continuously shifting the spray trajectory so that the full interior surface — including shadow areas — receives direct coverage. The result is a complete clean in less time and with less liquid volume.

Faster CIP cycles reduce the period a vessel is out of production. For facilities running multiple cleaning cycles per shift, the cumulative time recovered across a week is meaningful. Reduced consumption of water and cleaning chemicals per cycle lowers utility costs and chemical waste simultaneously, both of which carry weight for operations working under environmental or cost-reduction targets.

Automation and control

The Free Rotating Retractor is compatible with the Alfa Laval ThinkTop sensing and control unit. When the two are paired, the retractor's open and close position is monitored and regulated automatically — no manual inspection is needed to confirm device state during or after a CIP cycle. The ThinkTop can be integrated into plant-level control architectures for process documentation and alarm management, making the combination suitable for facilities that require audit trails for cleaning cycles.

Without a ThinkTop, the device operates as a stand-alone unit. It can be wall-mounted on a single vessel or combined with additional Free Rotating Retractors to cover larger or geometrically complex vessels. The modular design accommodates both configurations without modification to the core device.

Total cost of ownership

The economics extend beyond the unit price. Lower installation complexity, minimal maintenance demand, and measurable reductions in water and cleaning media consumption across every CIP cycle all reduce the total cost of ownership relative to static spray ball systems. For facilities specifying hygienic tank cleaning equipment over a multi-year horizon, those per-cycle savings accumulate across thousands of cleaning cycles. The device's construction — from material grade through to surface finish and elastomer compliance — also means it enters service already meeting the material standards expected in audited food and beverage processing environments, without requiring additional qualification steps.
