How CIP Return Pumps Handle Air-Entrained Liquids

The Alfa Laval MR centrifugal pump series represents a specialized solution for Clean-in-Place systems where standard pumps would struggle. Unlike conventional centrifugal pumps, these liquid-ring pumps maintain their prime even when handling significant amounts of air or gas mixed with liquid—a common challenge in CIP return applications. This capability stems from their unique impeller design and casing geometry that creates a liquid ring during operation.

Duplex Steel Construction for Industrial CIP Systems

Built with durability as a priority, the MR pump features acid-resistant, duplex-grade steel for all product-wetted parts including the pump casing, casing cover, and impeller. This premium material choice ensures exceptional corrosion resistance against the aggressive cleaning chemicals commonly used in industrial cleaning processes. The external mechanical single seal comes standard on all models, providing reliable shaft sealing even in demanding applications.

Noise Reduction Features in Industrial Pump Design

Understanding that plant noise levels impact working conditions, the MR pump comes equipped with a stainless steel shroud featuring noise-absorbing interior lining to protect the motor and reduce operational noise. For applications requiring further noise reduction, an optional noise reduction valve is available. This attention to auditory comfort doesn't compromise the pump's industrial-grade performance but enhances its suitability for various facility environments.

MR Pump Models for Different Capacity Requirements

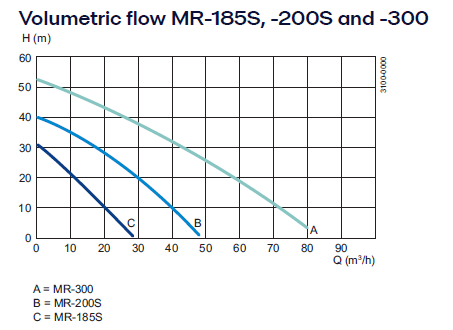

The Alfa Laval MR pump family includes three primary models—MR-185S, MR-200S, and MR-300—providing options for different flow rate requirements. Each model maintains the same core benefits while offering increased capacity as you move up the range. The MR-185S and MR-200S are available with multiple motor power options (5.5kW, 7.5kW, with 11kW also available for the MR-200S), allowing precise matching to specific system requirements. All models operate at 1500/1800 rpm at 50/60 Hz, powered by standard foot-flanged motors according to IEC metric standards.
