Alfa Laval LKHPF Centrifugal Pump

Alfa Laval LKHPF Centrifugal Pump

The high pressure centrifugal pump LKHPF by Alfa Laval is a precision-engineered solution specifically designed for high-pressure filtration applications. This high-efficiency unit stands out by offering significant energy savings and gentle product treatment even under demanding operating conditions. By utilizing an optimized design with tight tolerances and an advanced impeller, the LKHPF ensures process productivity remains high while minimizing recirculation. It serves technical professionals in the food, beverage, and pharmaceutical sectors who require a reliable reverse osmosis pump that can withstand extreme inlet pressures without compromising on hygienic standards. The robust construction ensures long-term chemical resistance and a wide performance envelope for diverse industrial needs.

Get a quote

The high pressure centrifugal pump LKHPF is constructed to handle the most rigorous process requirements, specifically those involving inlet pressures up to 40 bar. Unlike standard centrifugal pumps, the LKHPF series is engineered for durability in high-pressure filtration environments such as nanofiltration and reverse osmosis. All media-contacting steel components, including the pump casing, impeller, and backplate, are manufactured from W. 1.4404 (AISI 316L) to ensure maximum corrosion resistance and product safety.

Performance in Nanofiltration Pump Applications

To achieve superior efficiency, the LKHPF utilizes a semi-open impeller with a special vane design. This configuration allows for the gentle handling of sensitive products while maintaining the high flow rates required for modern filtration systems. The precision alignment provided by the compression coupling for the stub shaft reduces vibration and wear, extending the service life of the mechanical components. This design philosophy not only reduces the CO2 footprint through lower energy consumption but also minimizes the need for complex parallel or serial pump installations.

Hygienic Design and CIP Cleanability

Hygiene is central to the LKHPF design, which meets the most stringent industry standards. The pump is fully compatible with CIP cycles, ensuring that every internal surface is effectively cleaned without the need for disassembly. The unit is protected by a stainless steel shroud and supported by four adjustable legs, facilitating easy floor cleaning and maintenance. For particularly demanding media, various elastomer options and surface finish treatments are available to match specific regulatory requirements.

Technical Details

  • Product wetted steel parts: W. 1.4404 / AISI 316L
  • Other steel parts: Stainless steel
  • Inlet pressure: Maximum 4000 kPa / 40 bar / 600 psi
  • Temperature range: -10 °C to +140 °C (+14 °F to +284 °F) with EPDM
  • Product wetted elastomers: EPDM (standard), Nitrile (NBR), or Fluorinated rubber (FPM)
  • Rotary seal face: Silicon Carbide
  • Stationary seal face: Silicon Carbide
  • Internal surface finish: Standard blasted
  • Flush media temperature: Maximum 70 °C / 158 °F
  • Flush water consumption: 0.25-0.5 l/min / 4-8 USGPH

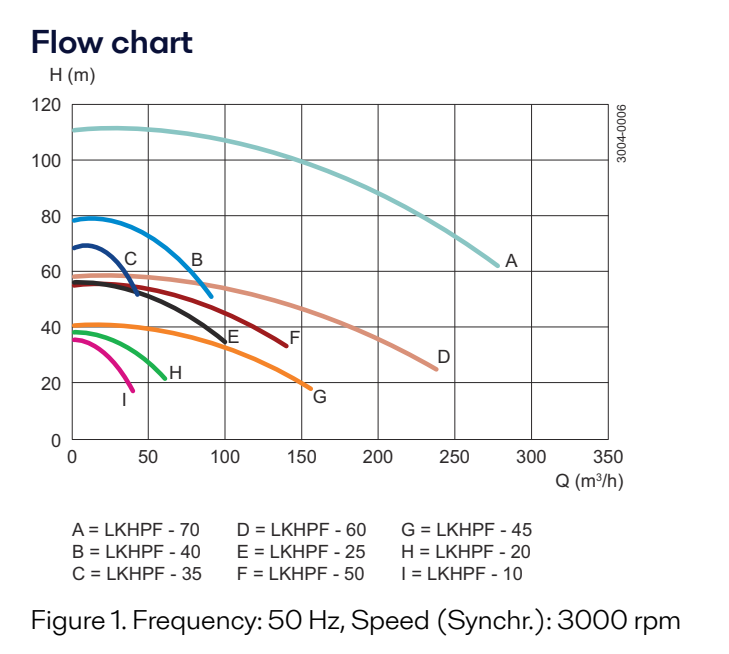

Alfa Laval LKHPF Centrifugal pump Flowchart

Options and Configurations

  • Flushed shaft seal for specific security and temperature requirements.
  • Nine distinct pump sizes available ranging from LKHPF-10 to LKHPF-70.
  • Impeller with reduced diameter for precise performance matching.
  • Product wetted elastomers available in NBR or FEP.
  • Product wetted surface finish mechanically polished to Ra ≤ 0.8 μm for sensitive high pressure centrifugal pump applications.
  • Surface finish measurement with certificate (Ra ≤ 0.8 μm).
  • Adjustable pads for secure mounting on uneven surfaces.
  • Motor configurations for alternative voltage and frequency requirements.

Motor Details

  • Motor standard: Foot-flanged motor according to the IEC metric standard
  • Efficiency class: IP 55 protection with labyrinth plug
  • Insulation class: F
  • Number of poles: 2 poles
  • Motor speed (50 Hz): 3000 rpm (Range: 900-4000 rpm for 0.75-45 kW; 900-3600 rpm for 55-110 kW)
  • Motor speed (60 Hz): 3600 rpm
  • Motor sizes (50 Hz): 2.2 kW to 75 kW
  • Motor sizes (60 Hz): 2.5 kW to 80 kW
  • Frame sizes: IEC90, IEC112, IEC132, IEC160, IEC180, IEC200, IEC250

Dairy processing

Biotechnology

Explore all applications

Pharmaceutical

Food processing
Tanks and stainless steel tubes and pumps in an industrial setting.

Industries

The LKHPF high pressure centrifugal pump is primarily utilized in the pharmaceutical manufacturing, food and beverage processing, and biotechnology sectors. It is specifically engineered for high-pressure environments, making it a critical component for system integrators and plant engineers. This pump ensures reliable operation across demanding industrial applications worldwide.

Alfa Laval Sensing and Control Think Top V50 and V70

Advanced Sensing and Control for Process Optimisation

Integrating Alfa Laval ThinkTop V50 and V70 units into your valve clusters delivers maximum uptime and significant resource savings. Their 360° LED status indication gives operators real-time flow path monitoring from any angle.

  • Resource savings: Pulse and Burst SeatClean reduce CIP fluid consumption by up to 95%.
  • Fast setup: Auto-Setup and Live-Setup cut commissioning time by up to 90%.
  • Durable: IP69K rated, -10°C to +60°C, Nylon PA12 and 1.4301 stainless steel.
  • Easy integration: Supports 24VDC PNP, AS-Interface, and IO-Link. MTTF of 224 years.
  • Universal fit: Directly interchangeable with ThinkTop Classic; fits all Alfa Laval hygienic actuators.

Ready to optimise your CIP return and process flows?

Our products

Service Kits Centrifugal Pumps

View all
SERVICE KIT EPDM LKHP/LKHP-F/ - LKHI-40/50/60 SIC/SIC FLUSHED SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT EPDM LKHP/LKHP-F/ - LKHI-40/50/60 SIC/SIC FLUSHED SHAFT SEAL AND IMPELLER SCREW Item number: 9611922172
Description: SERVICE KIT EPDM LKHP/LKHP-F/ - LKHI-40/50/60 S...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT NBR LKH-25/35/45 - SIC/SIC DOUBLE MECHANICAL SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT NBR LKH-25/35/45 - SIC/SIC DOUBLE MECHANICAL SHAFT SEAL AND IMPELLER SCREW Item number: 9611922615
Description: SERVICE KIT NBR LKH-25/35/45 - SIC/SIC DOUBLE M...
Login to view price
In stock:
Delivery time: On request
SERVICE KIT EPDM LKH-30/40/50 - /60 C/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT EPDM LKH-30/40/50 - /60 C/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW Item number: 9611922130
Description: SERVICE KIT EPDM LKH-30/40/50 - /60 C/SIC SINGL...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM LKH-25/35/45 - SIC/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT EPDM LKH-25/35/45 - SIC/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW Item number: 9611922598
Description: SERVICE KIT EPDM LKH-25/35/45 - SIC/SIC SINGLE ...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT NBR LKH-25/35/45 - SIC/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT NBR LKH-25/35/45 - SIC/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW Item number: 9611922599
Description: SERVICE KIT NBR LKH-25/35/45 - SIC/SIC SINGLE S...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM LKH-70 C/SIC - SINGLE SHAFT SEAL
SERVICE KIT EPDM LKH-70 C/SIC - SINGLE SHAFT SEAL Item number: 9611922238
Description: SERVICE KIT EPDM LKH-70 C/SIC - SINGLE SHAFT SEAL
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM LKH-10/15 - C/SIC DOUBLE MECHANICAL SHAFT SEAL
SERVICE KIT EPDM LKH-10/15 - C/SIC DOUBLE MECHANICAL SHAFT SEAL Item number: 9611922206
Description: SERVICE KIT EPDM LKH-10/15 - C/SIC DOUBLE MECHA...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT NBR LKH-25/35/45 - C/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT NBR LKH-25/35/45 - C/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW Item number: 9611922183
Description: SERVICE KIT NBR LKH-25/35/45 - C/SIC SINGLE SHA...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM LKH-20 C/SIC - SINGLE SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT EPDM LKH-20 C/SIC - SINGLE SHAFT SEAL AND IMPELLER SCREW Item number: 9611922122
Description: SERVICE KIT EPDM LKH-20 C/SIC - SINGLE SHAFT SE...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM C/SS 185/ - 200-A/S
SERVICE KIT EPDM C/SS 185/ - 200-A/S Item number: 9611921081
Description: SERVICE KIT EPDM C/SS 185/ - 200-A/S
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM LKH-25/35/45 - C/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT EPDM LKH-25/35/45 - C/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW Item number: 9611922182
Description: SERVICE KIT EPDM LKH-25/35/45 - C/SIC SINGLE SH...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT FEP SOLIDC-2 SIC/SIC FLUSHED SHAFT SEAL
SERVICE KIT FEP SOLIDC-2 SIC/SIC FLUSHED SHAFT SEAL Item number: 9611922826
Description: SERVICE KIT FEP SOLIDC-2 SIC/SIC FLUSHED SHAFT ...
Login to view price
In stock:
Delivery time:

Documentation

Product leaflet Performance curves Operating instructions
Marcus Schmidt, Euroflow GmbH owner

Are you interested?

As an Alfa Laval Master Distributor in Southern Germany, Euroflow GmbH delivers premium components and expert solutions for the dairy, brewing, beverage, food, cosmetics and pharmaceutical industries. Operating across postal codes 66-99 and 07-08, we serve Baden-Württemberg, Bavaria, Saarland, Rhineland-Palatinate, Hesse, Thuringia and Saxony with dedicated technical expertise.

As your competent partner for system integration, tank construction and end-user solutions, we provide comprehensive support in selecting optimal equipment for viscous product handling and cleaning processes. Our focus on pumps, valves, heat exchangers and tank equipment ensures reliable process performance.

Contact us today for a personalised quote and discover how our technical expertise can optimise your operations.

Get a quote

FAQ

Euroflow serves customers across southern and central Germany — covering postal code areas 66–99 and 07–08, spanning Baden-Württemberg, Bavaria, Saarland, Rhineland-Palatinate, Hesse, Thuringia, and Saxony. As an Alfa Laval Master Distributor for tank manufacturers, plant engineers, system suppliers, and end customers, we provide expert support in selecting and designing systems for viscous product handling and cleaning applications.

The Alfa Laval LKHPF is designed to handle a maximum inlet pressure of 40 bar (4000 kPa). This capability makes it suitable for heavy-duty applications that exceed the limits of standard centrifugal equipment.

Yes, the LKHPF is specifically engineered for reverse osmosis and nanofiltration installations. Its high efficiency and ability to withstand 40 bar inlet pressures make it ideal for these demanding filtration processes.

All product-wetted steel components, such as the impeller and casing, are made from AISI 316L (W. 1.4404) stainless steel. Seals are typically Silicon Carbide with EPDM elastomers for wide chemical resistance.
