Alfa Laval LKHex Centrifugal Pump

Alfa Laval LKHex Centrifugal Pump

The ATEX centrifugal pump known as the Alfa Laval LKHex is a premium solution specifically engineered for use in potentially explosive environments. This unit conforms strictly to ATEX directive 2014/34/EU group II, category 2G, ensuring safety in hazardous zones while maintaining the high-efficiency standards expected in modern production. It serves industries where flammable materials are present, providing a reliable bridge between explosive-safe operation and hygienic processing requirements. By utilizing an optimized impeller design and tight tolerances, this hygienic pump minimizes recirculation, significantly reducing energy consumption and the overall CO2 footprint of your facility.

Get a quote

High-Efficiency ATEX Centrifugal Pump Design

The Alfa Laval LKHex is a precision-engineered unit designed to maximize process productivity through high efficiency and gentle product treatment. All media-contacting components, including the pump casing, impeller, and backplate, are constructed from W. 1.4404 (AISI 316L) to ensure chemical resistance and durability. The pump features a semi-open impeller with a special vane design, which ensures the product is handled with extreme care to maintain its media integrity throughout the transfer process.

Reliable Operation in Explosive Environments

Safety is the primary focus of the LKHex series. The equipment is built to meet the requirements of temperature classes T3 and T4, making it suitable for a wide variety of volatile industrial applications. To provide additional protection and maintain a clean exterior, a stainless steel shroud covers the explosion-proof motor. The entire unit is supported by four adjustable stainless steel legs, allowing for easy installation and leveling within diverse plant layouts. A compression coupling securely attaches the stub shaft to the motor shaft, ensuring the precision alignment necessary for long-term mechanical reliability.

Front-Loading Seal Technology and Maintenance

To maximize uptime, the LKHex utilizes a robust mechanical design focused on ease of service. It features a modular front-loading shaft seal where the spring and washers are mounted on the atmospheric side. This design allows maintenance personnel to replace the shaft seal in just a few minutes, significantly reducing costs and downtime. The balanced seal design also provides an extra layer of protection by minimizing the risk of seal opening during unforeseen pressure shocks.

Technical Details

  • Product wetted steel parts: W. 1.4404 (AISI 316L)
  • Other steel parts: Stainless steel
  • Product wetted elastomers: EPDM
  • Rotary seal face: Carbon
  • Stationary seal face: Silicon Carbide
  • Inside surface finish: Standard blasted
  • Max inlet pressure: 500 kPa (5 bar)
  • Capacity: Up to 250 m3/h
  • Differential pressure: Up to 11 bar at 50 Hz
  • Temperature range Class T4: -10°C to +100°C
  • Temperature range Class T3: -10°C to +140°C

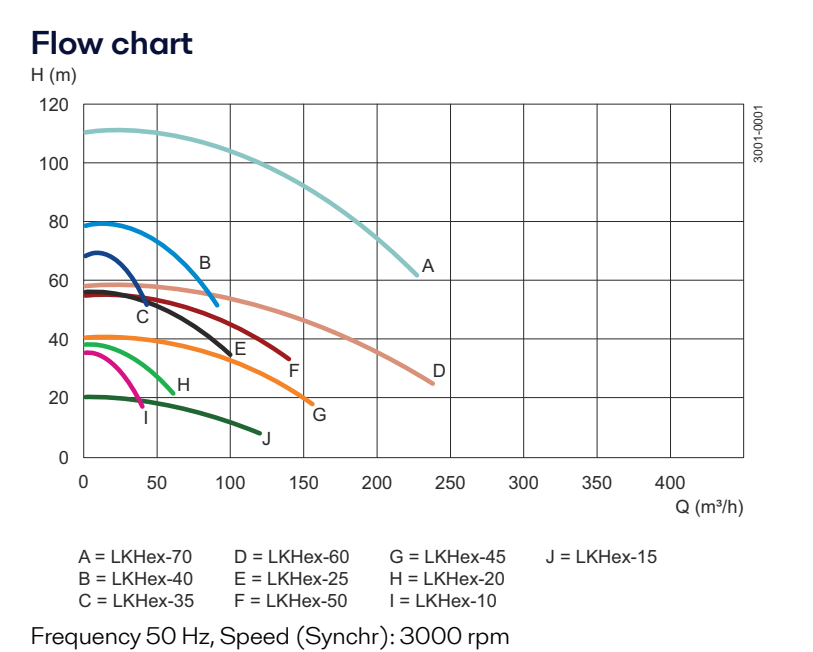

Alfa Laval LKHex Centrifugal pump Flowchart

Options and Configurations

  • Impeller with reduced diameter for tailored flow profiles.
  • Double mechanical shaft seal for specific containment needs.
  • Rotating seal ring of Silicon Carbide.
  • Execution without motor shroud.
  • Adjustable pads for floor mounting.
  • Product wetted surface finish mechanically polished to Ra ≤ 0.8 μm.
  • Product wetted elastomers in FPM, NBR, or FEP.
  • 1/2" drain connection for drainage.
  • Hydrostatic testing with certificate.
  • Surface finish measurement with certificate as a secondary keyword option.

Motor Details

  • Motor standard: IEC metric standard
  • Motor type: Foot-flanged ATEX approved motor
  • Poles: 2 poles
  • Speed range 50 Hz: 3000 rpm
  • Speed range 60 Hz: 3600 rpm
  • Motor sizes 50 Hz: 1.5 - 75 kW
  • Motor sizes 60 Hz: 1.5 - 75 kW
  • Frame sizes: IEC90, IEC100, IEC112, IEC132, IEC160, IEC180, IEC200, IEC250, IEC280

Beverage processing

Food processing

Explore all applications

Dairy processing

Beer production
Tanks and stainless steel tubes and pumps in an industrial setting.

Industries

The Alfa Laval LKHex is a critical component for specialized manufacturing sectors that operate within hazardous environments. This ATEX centrifugal pump is widely utilized in the food, beverage, and personal care industries. By meeting strict safety directives, it ensures reliable operation in demanding dairy and liquid processing facilities.
