Alfa Laval LKH UltraPure Centrifugal Pump

The high-purity centrifugal pump from the Alfa Laval LKH UltraPure series is engineered for processes where exceptional cleanability and contamination safety are the highest priorities. This unit provides an unobstructed product flow and very low NPSH requirements, making it the ideal choice for sensitive biological media. By utilizing a precision-engineered semi-open impeller and tight internal tolerances, the pump ensures excellent hydraulic efficiency and reduced energy consumption. This hygienic process pump serves the specialized needs of system integrators and end-users who require validated performance and a robust, low-maintenance design for their most critical fluid handling tasks.

Get a quote

High-Purity Centrifugal Pump Design for Sterile Processing

The Alfa Laval LKH UltraPure high-purity centrifugal pump is constructed to meet the most stringent regulations in the biotechnology and pharmaceutical sectors. All media-contacting steel components, including the pump casing, impeller, and backplate, are fabricated from W. 1.4404 (AISI 316L) stainless steel. To ensure full compliance with regulatory standards, every unit is delivered with the Alfa Laval Q-doc package, providing easier validation and material traceability 3.1 according to EN 10204. This documentation is essential for maintaining GMP and meeting ASME BPE requirements.

Optimized Impeller for Energy Efficient Fluid Transfer

At the heart of the pump is a semi-open impeller with a special vane design. This geometry is specifically intended to provide gentle product handling while maximizing energy efficiency. Because the design minimizes internal recirculation, it significantly reduces the overall CO2 footprint of the production facility. For operations requiring specific flow characteristics, the pump can be configured with a reduced diameter impeller or one with a delta ferrite content of max. 1%.

Maintenance Friendly Front Loading Shaft Seals

To maximize uptime, the LKH UltraPure features a modular front-loading shaft seal. This design allows maintenance personnel to replace the seal in just a few minutes without removing the pump casing. The balanced seal design also minimizes the risk of seal opening during unforeseen pressure shocks, protecting the integrity of the process. All product-wetted elastomers are specified to USP Class VI standards, ensuring that the risk of contamination from extractables is strictly controlled.

Technical Details

  • Product wetted steel parts: W. 1.4404 (AISI 316L and 329L) with material traceability 3.1 according to EN 10204
  • Other steel parts: Stainless steel
  • Inside surface finish: Mech Ra ≤ 0.5 / Electropolished Ra ≤ 15 µin
  • Product wetted elastomers: EPDM USP Class VI, 121 °C / 249.8 °F (Chapter 88 and Chapter 87)
  • Rotary seal face: Silicon Carbide
  • Stationary seal face: Silicon Carbide
  • Temperature range: -10 °C to +140 °C / +14 °F to +284 °F (EPDM)
  • Max. inlet pressure: 500 kPa (5 bar)
  • Flush media temperature: Max. 70 °C / 158 °F
  • Flush housing sterilization temperature: Max. 125 °C / 257 °F

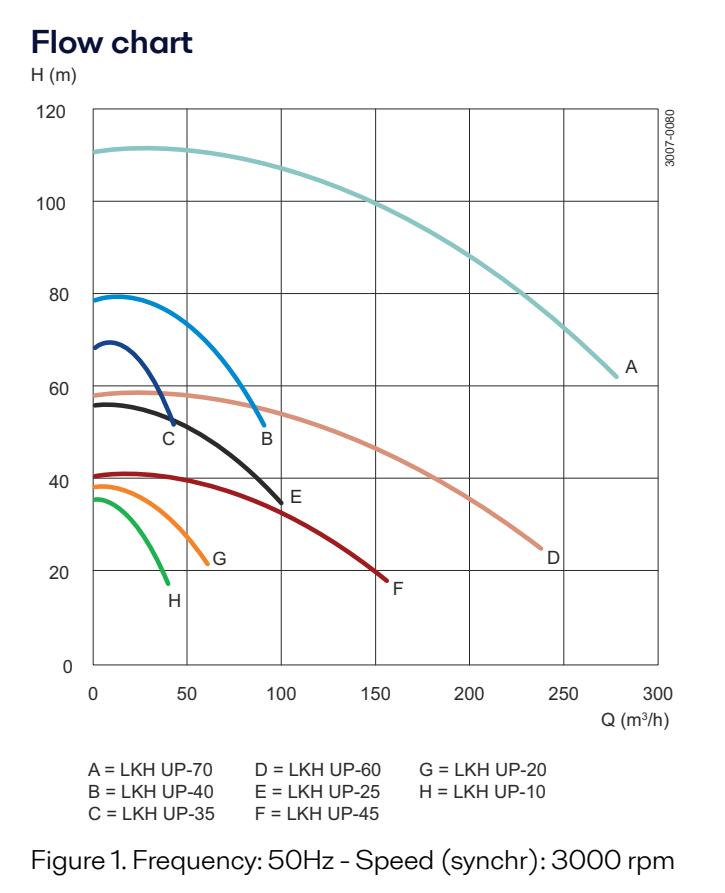

Alfa Laval LKH Ultrapure Centrifugal pump Flowchart

Options and Configurations

  • Double mechanical shaft seal for enhanced process safety
  • Impeller with reduced diameter for specific hydraulic requirements
  • Impeller with delta ferrite max. 1% for high-purity standards
  • Motor for other voltage and/or frequency requirements
  • Half speed motor for gentle handling applications
  • Motor with increased safety/flame proof motor
  • ATEX approved execution (LKHex UltraPure)
  • Special flush arrangement with 1/2" Alfa Laval Unique DVST UltraPure diaphragm valve, needle valve and flow meter
  • Product wetted surface finish electropolished to Ra ≤ 0.4 µm
  • Product wetted elastomers FPM or FEP to USP Class VI, 121°C
  • 0°, 90° or 270° outlet configuration
  • Horizontal drain connection or Unique DVST UltraPure valve welded directly to casing

Motor Details

  • Motor Standard: Foot-flanged motor according to IEC metric standard
  • Motor sizes 50Hz: 1.5-75 kW
  • Motor sizes 60Hz: 1.2-80 kW
  • Speed Configuration: 2 poles (3000/3600 rpm) or 4 poles (1500/1800 rpm)
  • Protection Class: IP 55 (with drain hole with labyrinth plug)
  • Insulation Class: F
  • Min/Max Motor Speed (2 poles 0.75-45 kW): 900-4000 rpm
  • Min/Max Motor Speed (2 poles 55-110 kW): 900-3600 rpm
  • Min/Max Motor Speed (4 poles 0.75-75 kW): 900-2200 rpm

Biotechnology

Beer production

Explore all applications

Pharmaceutical

Beverage processing
Tanks and stainless steel tubes and pumps in an industrial setting.

Industries

The Alfa Laval LKH UltraPure high-purity centrifugal pump is specifically designed for the biotechnology and pharmaceutical manufacturing industries. It provides the material integrity and documentation required for high-purity liquid handling. These units are also suitable for any specialized food and beverage processing where validated cleanability and contamination safety are critical.

Alfa Laval Sensing and Control Think Top V50 and V70

Advanced Sensing and Control for Process Optimisation

Integrating Alfa Laval ThinkTop V50 and V70 units into your valve clusters delivers maximum uptime and significant resource savings. Their 360° LED status indication gives operators real-time flow path monitoring from any angle.

  • Resource savings: Pulse and Burst SeatClean reduce CIP fluid consumption by up to 95%.
  • Fast setup: Auto-Setup and Live-Setup cut commissioning time by up to 90%.
  • Durable: IP69K rated, -10°C to +60°C, Nylon PA12 and 1.4301 stainless steel.
  • Easy integration: Supports 24VDC PNP, AS-Interface, and IO-Link. MTTF of 224 years.
  • Universal fit: Directly interchangeable with ThinkTop Classic; fits all Alfa Laval hygienic actuators.

Ready to optimise your CIP return and process flows?

Our products

Service Kits Centrifugal Pumps

View all
SERVICE KIT EPDM LKHP/LKHP-F/ - LKHI-40/50/60 SIC/SIC FLUSHED SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT EPDM LKHP/LKHP-F/ - LKHI-40/50/60 SIC/SIC FLUSHED SHAFT SEAL AND IMPELLER SCREW Item number: 9611922172
Description: SERVICE KIT EPDM LKHP/LKHP-F/ - LKHI-40/50/60 S...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT NBR LKH-25/35/45 - SIC/SIC DOUBLE MECHANICAL SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT NBR LKH-25/35/45 - SIC/SIC DOUBLE MECHANICAL SHAFT SEAL AND IMPELLER SCREW Item number: 9611922615
Description: SERVICE KIT NBR LKH-25/35/45 - SIC/SIC DOUBLE M...
Login to view price
In stock:
Delivery time: On request
SERVICE KIT EPDM LKH-30/40/50 - /60 C/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT EPDM LKH-30/40/50 - /60 C/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW Item number: 9611922130
Description: SERVICE KIT EPDM LKH-30/40/50 - /60 C/SIC SINGL...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM LKH-25/35/45 - SIC/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT EPDM LKH-25/35/45 - SIC/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW Item number: 9611922598
Description: SERVICE KIT EPDM LKH-25/35/45 - SIC/SIC SINGLE ...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT NBR LKH-25/35/45 - SIC/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT NBR LKH-25/35/45 - SIC/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW Item number: 9611922599
Description: SERVICE KIT NBR LKH-25/35/45 - SIC/SIC SINGLE S...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM LKH-70 C/SIC - SINGLE SHAFT SEAL
SERVICE KIT EPDM LKH-70 C/SIC - SINGLE SHAFT SEAL Item number: 9611922238
Description: SERVICE KIT EPDM LKH-70 C/SIC - SINGLE SHAFT SEAL
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM LKH-10/15 - C/SIC DOUBLE MECHANICAL SHAFT SEAL
SERVICE KIT EPDM LKH-10/15 - C/SIC DOUBLE MECHANICAL SHAFT SEAL Item number: 9611922206
Description: SERVICE KIT EPDM LKH-10/15 - C/SIC DOUBLE MECHA...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT NBR LKH-25/35/45 - C/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT NBR LKH-25/35/45 - C/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW Item number: 9611922183
Description: SERVICE KIT NBR LKH-25/35/45 - C/SIC SINGLE SHA...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM LKH-20 C/SIC - SINGLE SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT EPDM LKH-20 C/SIC - SINGLE SHAFT SEAL AND IMPELLER SCREW Item number: 9611922122
Description: SERVICE KIT EPDM LKH-20 C/SIC - SINGLE SHAFT SE...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM LKH-30/40/50 - /60 C/SIC SINGLE SHAFT SEAL
SERVICE KIT EPDM LKH-30/40/50 - /60 C/SIC SINGLE SHAFT SEAL Item number: 9611922088
Description: SERVICE KIT EPDM LKH-30/40/50 - /60 C/SIC SINGL...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM LKH-20 C/SIC - SINGLE SHAFT SEAL
SERVICE KIT EPDM LKH-20 C/SIC - SINGLE SHAFT SEAL Item number: 9611922080
Description: SERVICE KIT EPDM LKH-20 C/SIC - SINGLE SHAFT SEAL
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM C/SS 185/ - 200-A/S
SERVICE KIT EPDM C/SS 185/ - 200-A/S Item number: 9611921081
Description: SERVICE KIT EPDM C/SS 185/ - 200-A/S
Login to view price
In stock:
Delivery time: 1-3 days

Documentation

Product leaflet Performance curves Operating instructions
Marcus Schmidt, Euroflow GmbH owner

Are you interested?

As an Alfa Laval Master Distributor in Southern Germany, Euroflow GmbH delivers premium components and expert solutions for the dairy, brewing, beverage, food, cosmetics and pharmaceutical industries. Operating across postal codes 66-99 and 07-08, we serve Baden-Württemberg, Bavaria, Saarland, Rhineland-Palatinate, Hesse, Thuringia and Saxony with dedicated technical expertise.

As your competent partner for system integration, tank construction and end-user solutions, we provide comprehensive support in selecting optimal equipment for viscous product handling and cleaning processes. Our focus on pumps, valves, heat exchangers and tank equipment ensures reliable process performance.

Contact us today for a personalised quote and discover how our technical expertise can optimise your operations.

Get a quote

FAQ

Euroflow serves customers across southern and central Germany — covering postal code areas 66–99 and 07–08, spanning Baden-Württemberg, Bavaria, Saarland, Rhineland-Palatinate, Hesse, Thuringia, and Saxony. As an Alfa Laval Master Distributor for tank manufacturers, plant engineers, system suppliers, and end customers, we provide expert support in selecting and designing systems for viscous product handling and cleaning applications.

Every pump is delivered with the Alfa Laval Q-doc package, which provides full material traceability, proof of origin, and compliance with GMP and ASME BPE requirements. This documentation is essential for smooth qualification and validation of your process.

The front-loading shaft seal features a design where the spring and washers are mounted on the atmospheric side, allowing for fast and inexpensive maintenance. It takes only a few minutes to replace the shaft seal without specialized tools, maximizing uptime for your hygienic process pump.

Yes, the pump is available in an ATEX approved execution known as the LKHex UltraPure. Additionally, you can specify motors with increased safety or flame-proof ratings to meet specific environmental safety standards in your facility.
