Alfa Laval LKH Prime Centrifugal Pump

Alfa Laval LKH Prime Centrifugal Pump

The self-priming centrifugal pump known as the Alfa Laval LKH Prime is a versatile, high-efficiency solution engineered for demanding hygienic applications. Built upon the market-leading LKH platform, this unit excels at tank emptying and CIP return duties where entrained air is present. By utilizing advanced airscrew technology, the pump effectively removes air from the suction pipe to maintain consistent performance. This specialized design serves as a reliable CIP return pump, ensuring that your cleaning processes remain thorough and uninterrupted. Whether you are handling sensitive food products or managing waste recovery, the LKH Prime stands out for its ability to reduce energy consumption while maintaining the highest standards of cleanliness.

Get a quote

How does the self-priming centrifugal pump improve efficiency?

The Alfa Laval LKH Prime is precision-engineered to deliver greater energy efficiency than conventional self-priming pumps. Its optimized design combines a premium motor with tight internal tolerances and an advanced impeller. The integration of specialized airscrew technology allows the unit to handle air-to-liquid ratios that would cause standard pumps to lose prime. This minimizes recirculation and significantly reduces total energy consumption, helping facilities lower their CO2 footprint without sacrificing hydraulic performance.

Hygienic CIP return pump design for food safety

Construction of the LKH Prime prioritizes hygiene and durability. All media-contacting steel components, including the pump casing, impeller, airscrew, and recirculation pipe, are manufactured from W. 1.4404 (AISI 316L). The design is verified for effective CIP cleanability, meeting the most stringent standards for the food, dairy, and beverage industries. Because it can function as both a product pump and a CIP return unit, it reduces the need for additional equipment, lowering your initial capital investment.

Quiet operation in processing environments

One of the primary advantages of the LKH Prime is its remarkably quiet operation. Compared to other self-priming technologies, this pump significantly improves the working environment by reducing noise levels during operation. The unit is supported by four adjustable stainless steel legs and features a stainless steel shroud that protects the motor, ensuring long-term reliability in wet processing areas. The semi-open impeller features a special vane design for efficient product handling during transfer.

Technical Details

  • Product wetted steel parts: W. 1.4404 / AISI 316L
  • Other steel parts: Stainless steel
  • Inside surface finish: Standard blasted
  • Product wetted elastomers: EPDM
  • Rotary seal face: Carbon
  • Stationary seal face: Silicon Carbide
  • Max inlet pressure (LKH Prime 10 to 40): 500 kPa / 5 bar / 72.5 psi
  • Temperature range: -10 °C to +140 °C
  • Flush media max temperature: 70 °C
  • Seal connection sizes: ⅛"

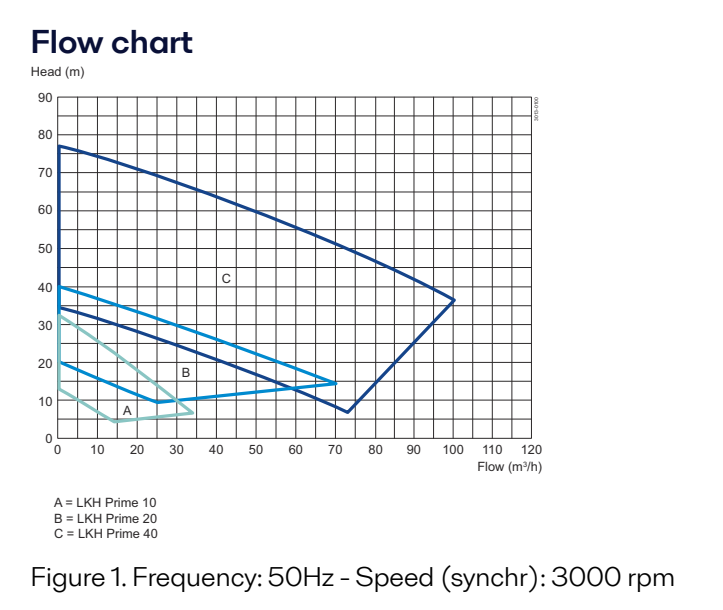

Alfa Laval LKH Prime Centrifugal pump Flowchart

Options and Configurations

  • Double mechanical shaft seal for specific security requirements.
  • Impeller with reduced diameter to match specific performance curves.
  • Rotating seal face available in Silicon Carbide.
  • Product wetted elastomers available in NBR or FPM.
  • Vertical drain connections (two ½" connections) for enhanced drainage.
  • Mechanically polished product wetted surface finish to Ra ≤ 0.8 μm.
  • Adjustable pads for floor mounting.
  • Motor configurations for alternative voltage and frequency requirements.
  • Motor with increased safety or flame proof motor options.
  • This versatile hygienic pump can be configured for diverse process needs.

Motor Details

  • Motor standard: IEC metric standard foot-flanged motor
  • Poles: 2 poles (3000/3600 rpm at 50/60 Hz)
  • Protection class: IP 55 (with drain hole with labyrinth plug)
  • Insulation class: F
  • Motor sizes 50Hz: 1.5 - 45 kW
  • Motor sizes 60Hz: 1.5 - 45 kW
  • Frame sizes: IEC90, IEC100, IEC112, IEC132, IEC160, IEC180, IEC200

Food processing

Beverage processing

Explore all applications

Dairy processing

Beer production
Tanks and stainless steel tubes and pumps in an industrial setting.

Industries

The Alfa Laval LKH Prime serves as a critical component in the dairy, beverage, and home-personal care industries. This self-priming centrifugal pump is designed to handle the rigorous hygiene standards required for food and personal care manufacturing. By providing efficient fluid transfer and cleaning capabilities, it supports the operational goals of modern process industries.

Alfa Laval Sensing and Control Think Top V50 and V70

Advanced Sensing and Control for Process Optimisation

Integrating Alfa Laval ThinkTop V50 and V70 units into your valve clusters delivers maximum uptime and significant resource savings. Their 360° LED status indication gives operators real-time flow path monitoring from any angle.

  • Resource savings: Pulse and Burst SeatClean reduce CIP fluid consumption by up to 95%.
  • Fast setup: Auto-Setup and Live-Setup cut commissioning time by up to 90%.
  • Durable: IP69K rated, -10°C to +60°C, Nylon PA12 and 1.4301 stainless steel.
  • Easy integration: Supports 24VDC PNP, AS-Interface, and IO-Link. MTTF of 224 years.
  • Universal fit: Directly interchangeable with ThinkTop Classic; fits all Alfa Laval hygienic actuators.

Ready to optimise your CIP return and process flows?

Our products

Service Kits Centrifugal Pumps

View all
SERVICE KIT EPDM LKHP/LKHP-F/ - LKHI-40/50/60 SIC/SIC FLUSHED SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT EPDM LKHP/LKHP-F/ - LKHI-40/50/60 SIC/SIC FLUSHED SHAFT SEAL AND IMPELLER SCREW Item number: 9611922172
Description: SERVICE KIT EPDM LKHP/LKHP-F/ - LKHI-40/50/60 S...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT NBR LKH-25/35/45 - SIC/SIC DOUBLE MECHANICAL SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT NBR LKH-25/35/45 - SIC/SIC DOUBLE MECHANICAL SHAFT SEAL AND IMPELLER SCREW Item number: 9611922615
Description: SERVICE KIT NBR LKH-25/35/45 - SIC/SIC DOUBLE M...
Login to view price
In stock:
Delivery time: On request
SERVICE KIT EPDM LKH-30/40/50 - /60 C/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT EPDM LKH-30/40/50 - /60 C/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW Item number: 9611922130
Description: SERVICE KIT EPDM LKH-30/40/50 - /60 C/SIC SINGL...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM LKH-25/35/45 - SIC/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT EPDM LKH-25/35/45 - SIC/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW Item number: 9611922598
Description: SERVICE KIT EPDM LKH-25/35/45 - SIC/SIC SINGLE ...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT NBR LKH-25/35/45 - SIC/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT NBR LKH-25/35/45 - SIC/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW Item number: 9611922599
Description: SERVICE KIT NBR LKH-25/35/45 - SIC/SIC SINGLE S...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM LKH-70 C/SIC - SINGLE SHAFT SEAL
SERVICE KIT EPDM LKH-70 C/SIC - SINGLE SHAFT SEAL Item number: 9611922238
Description: SERVICE KIT EPDM LKH-70 C/SIC - SINGLE SHAFT SEAL
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM LKH-10/15 - C/SIC DOUBLE MECHANICAL SHAFT SEAL
SERVICE KIT EPDM LKH-10/15 - C/SIC DOUBLE MECHANICAL SHAFT SEAL Item number: 9611922206
Description: SERVICE KIT EPDM LKH-10/15 - C/SIC DOUBLE MECHA...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT NBR LKH-25/35/45 - C/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT NBR LKH-25/35/45 - C/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW Item number: 9611922183
Description: SERVICE KIT NBR LKH-25/35/45 - C/SIC SINGLE SHA...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM LKH-20 C/SIC - SINGLE SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT EPDM LKH-20 C/SIC - SINGLE SHAFT SEAL AND IMPELLER SCREW Item number: 9611922122
Description: SERVICE KIT EPDM LKH-20 C/SIC - SINGLE SHAFT SE...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM C/SS 185/ - 200-A/S
SERVICE KIT EPDM C/SS 185/ - 200-A/S Item number: 9611921081
Description: SERVICE KIT EPDM C/SS 185/ - 200-A/S
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM LKH-25/35/45 - C/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT EPDM LKH-25/35/45 - C/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW Item number: 9611922182
Description: SERVICE KIT EPDM LKH-25/35/45 - C/SIC SINGLE SH...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT FEP SOLIDC-2 SIC/SIC FLUSHED SHAFT SEAL
SERVICE KIT FEP SOLIDC-2 SIC/SIC FLUSHED SHAFT SEAL Item number: 9611922826
Description: SERVICE KIT FEP SOLIDC-2 SIC/SIC FLUSHED SHAFT ...
Login to view price
In stock:
Delivery time:

Documentation

Product leaflet Performance curves Operating instructions
Marcus Schmidt, Euroflow GmbH owner

Are you interested?

As an Alfa Laval Master Distributor in Southern Germany, Euroflow GmbH delivers premium components and expert solutions for the dairy, brewing, beverage, food, cosmetics and pharmaceutical industries. Operating across postal codes 66-99 and 07-08, we serve Baden-Württemberg, Bavaria, Saarland, Rhineland-Palatinate, Hesse, Thuringia and Saxony with dedicated technical expertise.

As your competent partner for system integration, tank construction and end-user solutions, we provide comprehensive support in selecting optimal equipment for viscous product handling and cleaning processes. Our focus on pumps, valves, heat exchangers and tank equipment ensures reliable process performance.

Contact us today for a personalised quote and discover how our technical expertise can optimise your operations.

Get a quote

FAQ

Euroflow serves customers across southern and central Germany — covering postal code areas 66–99 and 07–08, spanning Baden-Württemberg, Bavaria, Saarland, Rhineland-Palatinate, Hesse, Thuringia, and Saxony. As an Alfa Laval Master Distributor for tank manufacturers, plant engineers, system suppliers, and end customers, we provide expert support in selecting and designing systems for viscous product handling and cleaning applications.

Yes, the LKH Prime is specifically designed for CIP return applications. Its airscrew technology and optimized design allow it to efficiently handle entrained air, making it more effective than standard centrifugal models for this task.

All parts that come into contact with the product, including the impeller and casing, are made from W. 1.4404 (AISI 316L) stainless steel. Standard elastomers used are EPDM, which supports a wide temperature range from -10 °C to +140 °C.

The unit includes an extended 3-year warranty covering all non-wear parts. This coverage is valid provided that genuine Alfa Laval spare parts are used for maintenance and repair.
