Alfa Laval LKH Multistage Centrifugal Pump

Alfa Laval LKH Multistage Centrifugal Pump

The multistage centrifugal pump is a high-efficiency solution engineered for demanding hygienic environments where precision and reliability are non-negotiable. Designed to replace multiple booster pumps in a single line, this unit excels in high-pressure, low-capacity applications, significantly reducing your physical footprint and energy overhead. Whether you are managing complex filtration or high-head transfers, this stainless steel sanitary pump provides the robust performance required for sensitive processing tasks. Its advanced impeller design and tight internal tolerances minimize recirculation, ensuring every watt of energy is used effectively to move your product safely through the line.

Get a quote

How does a multistage centrifugal pump improve process efficiency?

The LKH Multistage series is specifically designed to handle extreme pressure requirements that would typically require several individual pumps installed in series. By utilizing up to four stages within a single unit, this pump can withstand system pressures up to 40 bar and deliver differential pressures up to 19 bar at 50 Hz. This consolidated design not only saves valuable floor space but also reduces the total cost of ownership by lowering energy consumption and simplifying the spare parts inventory needed for your facility.

Hygienic design for filtration and sensitive media

Construction materials are critical in sanitary environments, which is why all media-contacting steel components, including the pump casing, impellers, and backplate, are manufactured from W. 1.4404 (AISI 316L) stainless steel. The unit is designed for full CIP cleanability, ensuring that even the most stringent hygiene standards are met. The balanced shaft seal design is a key safety feature, minimizing the risk of seal opening during unforeseen pressure shocks, which protects both the equipment and the integrity of your product.

Simplified maintenance with front-loading seals

To maximize uptime, these pumps feature a front-loading shaft seal design. This allows maintenance teams to replace the seal in just a few minutes without extensive disassembly of the unit. For the most demanding high-pressure scenarios, P-models are available with reinforced backplates and special motor bearings, ensuring the pump remains stable and performs reliably under continuous heavy-duty cycles.

Technical Details

  • Product wetted steel parts: W. 1.4404 (AISI 316L) and duplex stainless steel
  • Other steel parts: Stainless steel
  • Inside surface finish: Standard blasted
  • Product wetted elastomers: EPDM
  • Rotary seal face: Carbon
  • Stationary seal face: Silicon Carbide
  • Maximum inlet pressure: Up to 40 bar
  • Maximum differential pressure: 19 bar at 50 Hz
  • Temperature range: -10 °C to +140 °C
  • Continuous CIP capability

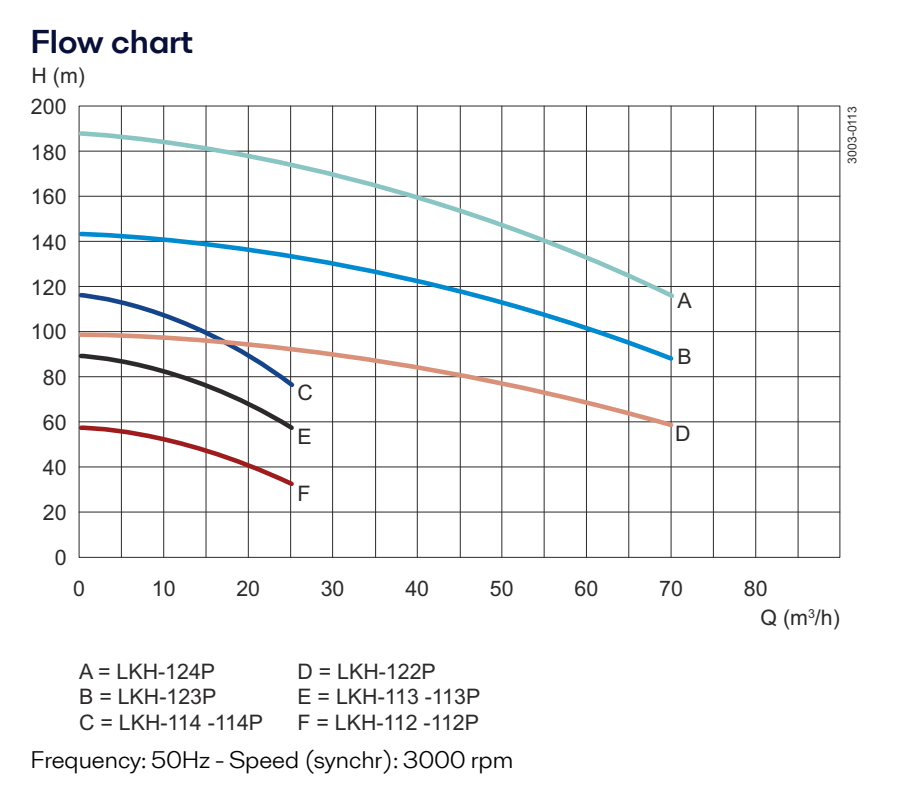

Alfa Laval LKH Multistage Centrifugal pump Flowchart

Options and Configurations

  • Two-, three- or four-stage models for customized pressure requirements
  • Flushed shaft seal with long-lasting lip seal for abrasive applications
  • Special motors with dedicated bearings for high-pressure P-models
  • Reinforced backplate available for high-load configurations
  • Impeller with reduced diameter to match specific flow requirements
  • Rotating seal face in Silicon Carbide for enhanced durability
  • Alternative product wetted elastomers in NBR or FPM
  • Support base options including adjustable pads for easy leveling

Motor Details

  • Motor standard: Foot-flanged motor according to IEC metric standard
  • Pole configuration: 2 poles (3000/3600 rpm at 50/60 Hz)
  • Protection class: IP 55
  • Insulation class: F
  • Motor sizes 50Hz: 2.2 kW to 75 kW
  • Motor sizes 60Hz: 2.2 kW to 75 kW
  • Speed range: 900 rpm to 3600 rpm
  • Shaft configuration: Fixed ball bearing on drive side for LKH-110; special bearings for LKH-110P and LKH-120P

Beverage processing

Food processing

Explore all applications

Pharmaceutical

Biotechnology
Tanks and stainless steel tubes and pumps in an industrial setting.

Industries

This multistage centrifugal pump serves as a critical component in pharmaceutical manufacturing and biotechnology sectors where high pressure and hygiene are paramount. It is equally effective in food and beverage processing, providing the reliable pressure needed for modern filtration systems. The robust AISI 316L construction ensures compatibility with the stringent safety standards across these global process industries.

Alfa Laval Sensing and Control Think Top V50 and V70

Advanced Sensing and Control for Process Optimisation

Integrating Alfa Laval ThinkTop V50 and V70 units into your valve clusters delivers maximum uptime and significant resource savings. Their 360° LED status indication gives operators real-time flow path monitoring from any angle.

  • Resource savings: Pulse and Burst SeatClean reduce CIP fluid consumption by up to 95%.
  • Fast setup: Auto-Setup and Live-Setup cut commissioning time by up to 90%.
  • Durable: IP69K rated, -10°C to +60°C, Nylon PA12 and 1.4301 stainless steel.
  • Easy integration: Supports 24VDC PNP, AS-Interface, and IO-Link. MTTF of 224 years.
  • Universal fit: Directly interchangeable with ThinkTop Classic; fits all Alfa Laval hygienic actuators.

Ready to optimise your CIP return and process flows?

Our products

Service Kits Centrifugal Pumps

View all
SERVICE KIT EPDM LKHP/LKHP-F/ - LKHI-40/50/60 SIC/SIC FLUSHED SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT EPDM LKHP/LKHP-F/ - LKHI-40/50/60 SIC/SIC FLUSHED SHAFT SEAL AND IMPELLER SCREW Item number: 9611922172
Description: SERVICE KIT EPDM LKHP/LKHP-F/ - LKHI-40/50/60 S...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT NBR LKH-25/35/45 - SIC/SIC DOUBLE MECHANICAL SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT NBR LKH-25/35/45 - SIC/SIC DOUBLE MECHANICAL SHAFT SEAL AND IMPELLER SCREW Item number: 9611922615
Description: SERVICE KIT NBR LKH-25/35/45 - SIC/SIC DOUBLE M...
Login to view price
In stock:
Delivery time: On request
SERVICE KIT EPDM LKH-30/40/50 - /60 C/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT EPDM LKH-30/40/50 - /60 C/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW Item number: 9611922130
Description: SERVICE KIT EPDM LKH-30/40/50 - /60 C/SIC SINGL...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM LKH-25/35/45 - SIC/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT EPDM LKH-25/35/45 - SIC/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW Item number: 9611922598
Description: SERVICE KIT EPDM LKH-25/35/45 - SIC/SIC SINGLE ...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT NBR LKH-25/35/45 - SIC/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT NBR LKH-25/35/45 - SIC/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW Item number: 9611922599
Description: SERVICE KIT NBR LKH-25/35/45 - SIC/SIC SINGLE S...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM LKH-70 C/SIC - SINGLE SHAFT SEAL
SERVICE KIT EPDM LKH-70 C/SIC - SINGLE SHAFT SEAL Item number: 9611922238
Description: SERVICE KIT EPDM LKH-70 C/SIC - SINGLE SHAFT SEAL
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM LKH-10/15 - C/SIC DOUBLE MECHANICAL SHAFT SEAL
SERVICE KIT EPDM LKH-10/15 - C/SIC DOUBLE MECHANICAL SHAFT SEAL Item number: 9611922206
Description: SERVICE KIT EPDM LKH-10/15 - C/SIC DOUBLE MECHA...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT NBR LKH-25/35/45 - C/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT NBR LKH-25/35/45 - C/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW Item number: 9611922183
Description: SERVICE KIT NBR LKH-25/35/45 - C/SIC SINGLE SHA...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM LKH-20 C/SIC - SINGLE SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT EPDM LKH-20 C/SIC - SINGLE SHAFT SEAL AND IMPELLER SCREW Item number: 9611922122
Description: SERVICE KIT EPDM LKH-20 C/SIC - SINGLE SHAFT SE...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM C/SS 185/ - 200-A/S
SERVICE KIT EPDM C/SS 185/ - 200-A/S Item number: 9611921081
Description: SERVICE KIT EPDM C/SS 185/ - 200-A/S
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT EPDM LKH-25/35/45 - C/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW
SERVICE KIT EPDM LKH-25/35/45 - C/SIC SINGLE SHAFT SEAL AND IMPELLER SCREW Item number: 9611922182
Description: SERVICE KIT EPDM LKH-25/35/45 - C/SIC SINGLE SH...
Login to view price
In stock:
Delivery time: 1-3 days
SERVICE KIT FEP SOLIDC-2 SIC/SIC FLUSHED SHAFT SEAL
SERVICE KIT FEP SOLIDC-2 SIC/SIC FLUSHED SHAFT SEAL Item number: 9611922826
Description: SERVICE KIT FEP SOLIDC-2 SIC/SIC FLUSHED SHAFT ...
Login to view price
In stock:
Delivery time:

Documentation

Product leaflet Performance curves Operating instructions
Marcus Schmidt, Euroflow GmbH owner

Are you interested?

As an Alfa Laval Master Distributor in Southern Germany, Euroflow GmbH delivers premium components and expert solutions for the dairy, brewing, beverage, food, cosmetics and pharmaceutical industries. Operating across postal codes 66-99 and 07-08, we serve Baden-Württemberg, Bavaria, Saarland, Rhineland-Palatinate, Hesse, Thuringia and Saxony with dedicated technical expertise.

As your competent partner for system integration, tank construction and end-user solutions, we provide comprehensive support in selecting optimal equipment for viscous product handling and cleaning processes. Our focus on pumps, valves, heat exchangers and tank equipment ensures reliable process performance.

Contact us today for a personalised quote and discover how our technical expertise can optimise your operations.

Get a quote

FAQ

Euroflow serves customers across southern and central Germany — covering postal code areas 66–99 and 07–08, spanning Baden-Württemberg, Bavaria, Saarland, Rhineland-Palatinate, Hesse, Thuringia, and Saxony. As an Alfa Laval Master Distributor for tank manufacturers, plant engineers, system suppliers, and end customers, we provide expert support in selecting and designing systems for viscous product handling and cleaning applications.

Yes, because it is available in two-, three-, or four-stage models, it can deliver high differential pressures (up to 19 bar) that typically require multiple pumps in series. This consolidation saves installation space and reduces total energy consumption across your process line.

Standard models handle significant inlet pressures, but special P-model versions with reinforced backplates are designed for inlet pressures up to 30 bar or higher depending on temperature. The overall system is engineered to withstand total pressures up to 40 bar.

Maintenance is fast and inexpensive due to the front-loading shaft seal design, which allows for replacement in just a few minutes. You can also specify a flushed shaft seal option for applications involving high temperatures or media that could crystallize.
