Alfa Laval LKH Evap Centrifugal Pump

Alfa Laval LKH Evap Centrifugal Pump

The LKH Evap centrifugal pump is a premium, high-efficiency solution engineered specifically for demanding hygienic applications. This unit stands out as a tailored evaporator pump, supported by a comprehensive vacuum curve package to ensure precise performance in volatile conditions. Designed to serve technical professionals in the dairy and food sectors, the pump utilizes an advanced impeller design to minimize recirculation and significantly reduce energy consumption. Whether you are handling liquid concentration or powder processing, this hygienic centrifugal pump provides the reliability required for continuous production cycles.

Get a quote

Why Choose the LKH Evap Centrifugal Pump for Evaporation?

The LKH Evap centrifugal pump is precision-engineered to deliver greater energy efficiency than standard models. Its optimized design features tight tolerances and a premium motor that work in tandem to lower the total cost of ownership. By reducing the CO2 footprint and energy usage, it supports sustainable manufacturing goals without compromising on powerful hydraulic performance. The inclusion of a tailored vacuum curve package allows engineers to integrate the pump into complex evaporation systems with complete confidence in its performance parameters.

High Solids Handling with ClearFlow Impeller

One of the primary challenges in evaporation is product buildup. This pump addresses that problem with the optional ClearFlow scraper impeller. This specialized design is intended for high solids applications where a hard layer of product might otherwise form between the impeller and the backplate. By preventing this buildup, the pump prolongs production time between cleaning cycles, directly increasing plant uptime. The semi-open impeller further ensures gentle product handling, maintaining the integrity of sensitive media during transfer.

Hygienic Design and Maintenance Efficiency

Constructed with W. 1.4404 (AISI 316L) stainless steel for all media-contacting parts, the pump meets the most stringent hygienic standards. Maintenance is streamlined through a front-loading shaft seal design. Because the spring and washers are mounted on the atmospheric side, technicians can replace the seal in just a few minutes without complex teardowns. The balanced seal design also protects the unit against unforeseen pressure shocks, ensuring a robust mechanical life in rigorous industrial environments.

Technical Details

  • Product wetted steel parts: W. 1.4404 / AISI 316L
  • Product wetted elastomers: EPDM
  • Inside surface finish: Standard blasted
  • Rotary seal face: Carbon
  • Stationary seal face: Silicon Carbide
  • Temperature range: -10 °C to +140 °C (+14 °F to +284 °F)
  • Maximum inlet pressure (50Hz): 1000 kPa (10 bar / 145 psi)
  • Maximum inlet pressure (60Hz): 500 kPa (5 bar / 72.5 psi)
  • Flush media temperature: Max. 70 °C (158 °F)
  • Flush housing sterilization: Max. 125 °C (257 °F)

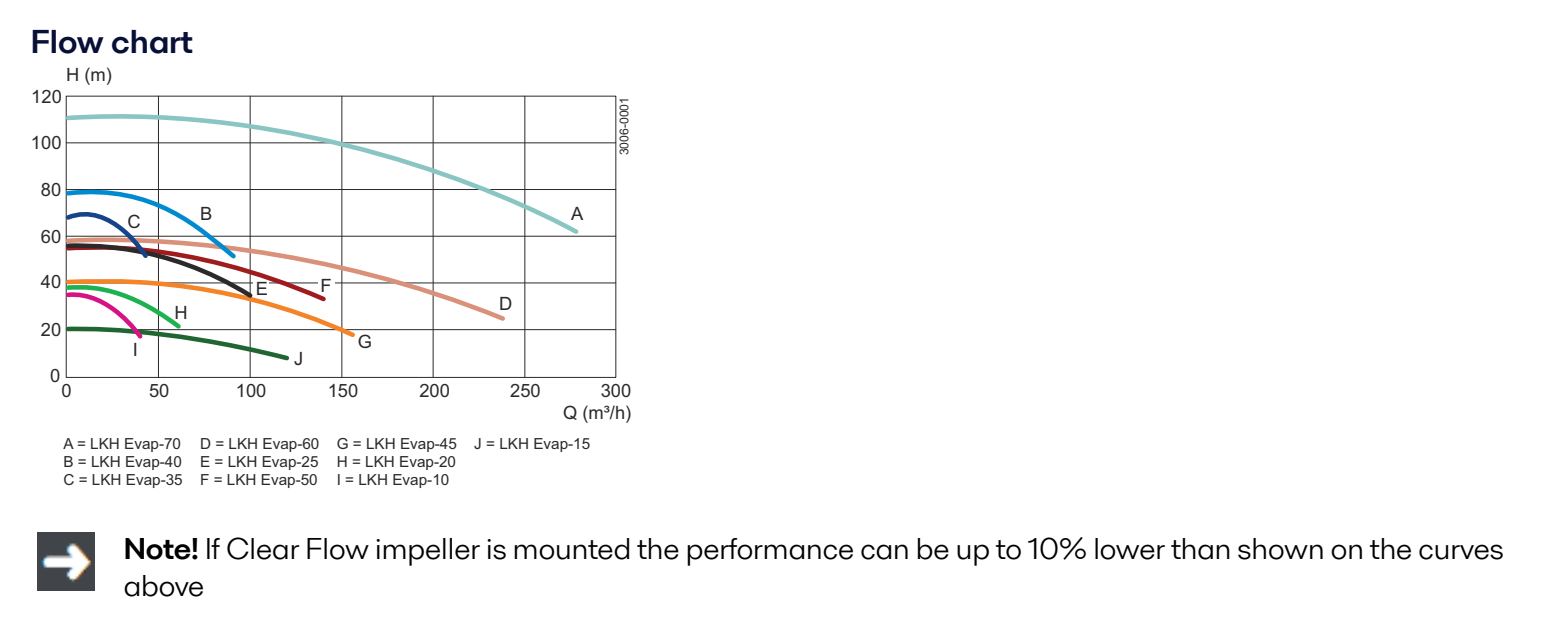

Alfa Laval LKH Evap Centrifugal pump Flowchart

Options and Configurations

  • ClearFlow Impeller to prevent hard product layer buildup in high solids applications
  • Double mechanical shaft seal for specific containment requirements
  • Single flushed shaft seal configuration
  • Rotating seal face in Silicon Carbide
  • Product wetted elastomers in NBR, FPM, or FEP
  • Mechanically polished surface finish to Ra ≤ 0.8 μm
  • Surface finish measurement with certificate
  • Inducer for LKH Evap 10 to 50 models to improve suction performance
  • Adjustable pads for installation flexibility
  • Specialized motors for alternative voltage, frequency, or safety ratings

Motor Details

  • Motor type: Foot-flanged motor according to IEC metric standard
  • Pole configuration: 2 poles (3000/3600 rpm) or 4 poles (1500/1800 rpm)
  • Motor sizes 50Hz: 1.5-75 kW
  • Motor sizes 60Hz: 1.5-75 kW
  • Protection class: IP 55
  • Insulation class: F
  • Speed range (2 poles): 900-4000 rpm (up to 45 kW) or 900-3600 rpm (above 55 kW)
  • Speed range (4 poles): 900-2200 rpm

Dairy processing

Food processing

Explore all applications

Beverage processing

Beer production
Tanks and stainless steel tubes and pumps in an industrial setting.

Industries

The LKH Evap centrifugal pump serves demanding process sectors including chemical manufacturing, food processing, and dairy production. Its specialized design for evaporation duties makes it a critical component for system integrators and plant engineers. By choosing this hygienic centrifugal pump, facilities ensure high-efficiency operation across diverse industrial sectors.

Alfa Laval Sensing and Control Think Top V50 and V70

Advanced Sensing and Control for Process Optimisation

Integrating Alfa Laval ThinkTop V50 and V70 units into your valve clusters delivers maximum uptime and significant resource savings. Their 360° LED status indication gives operators real-time flow path monitoring from any angle.

  • Resource savings: Pulse and Burst SeatClean reduce CIP fluid consumption by up to 95%.
  • Fast setup: Auto-Setup and Live-Setup cut commissioning time by up to 90%.
  • Durable: IP69K rated, -10°C to +60°C, Nylon PA12 and 1.4301 stainless steel.
  • Easy integration: Supports 24VDC PNP, AS-Interface, and IO-Link. MTTF of 224 years.
  • Universal fit: Directly interchangeable with ThinkTop Classic; fits all Alfa Laval hygienic actuators.
