VALVE SMP-BC W DN65 12 NC
VALVE SMP-BC W DN65 12 NC
Roll over image to zoom in Click on image to zoom
VALVE SMP-BC W DN65 12 NC
VALVE SMP-BC W DN65 12 NC

VALVE SMP-BC W DN65 12 NC

Manufacturer:Alfa Laval
Alsis code: 5252
Item number: 9614461770
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 84818073
Delivery time:On request
  • Size din: DN65
  • Elastomer: EPDM
  • Connection type: Welding ends
  • Port configuration: 12
  • Inside surface quality: Ra ≤ 1.6 μm
  • Port degree: 270
  • Spring: Standard
  • Item Weight: 13.4
  • Country of origin: China
Price:
Login to view price

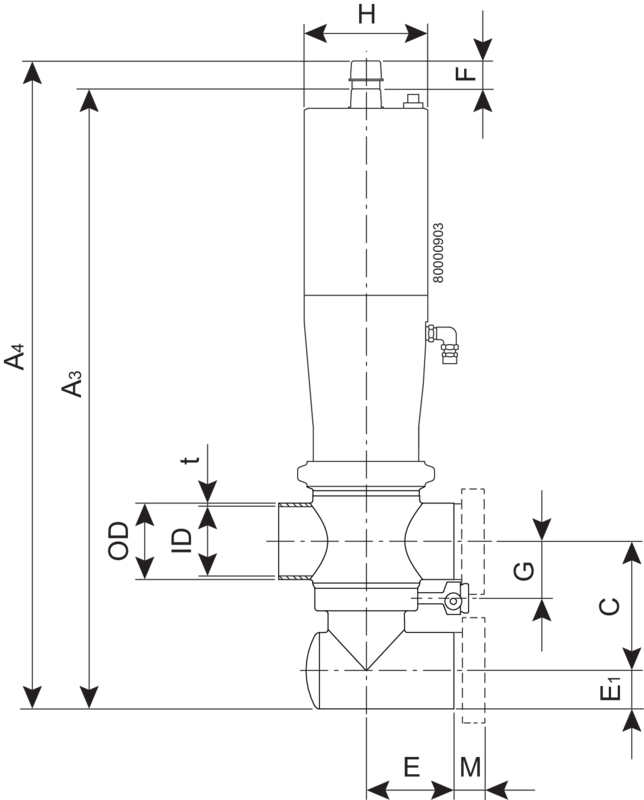

A1: 430
A2: 455
G: 42.5
E: 82.3
H: 133

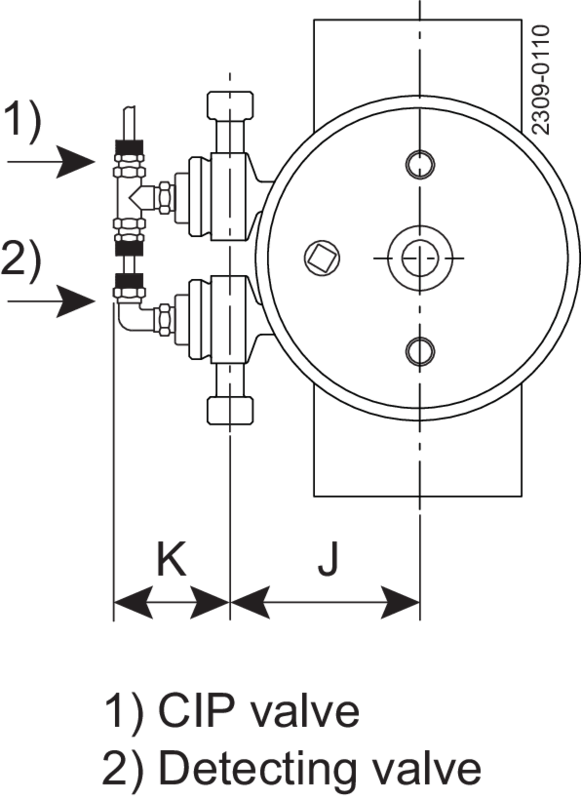

J: 57
K: 63
T: 2
Inner diameter: 66
Outer diameter: 70
