VALVE SMP-BC-W-DN150-20-NC-
VALVE SMP-BC-W-DN150-20-NC-
Roll over image to zoom in Click on image to zoom
VALVE SMP-BC-W-DN150-20-NC-
VALVE SMP-BC-W-DN150-20-NC-

VALVE SMP-BC-W-DN150-20-NC-

Manufacturer:Alfa Laval
Alsis code: 5252
Item number: 9612465603
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 84818073
Delivery time:On request
  • Size din: DN150
  • Elastomer: EPDM
  • Connection type: Welding ends
  • Port configuration: 20
  • Inside surface quality: Ra ≤ 1.6 μm
  • Spring: Standard
  • Item Weight: 32
  • Country of origin: Denmark
Price:
Login to view price

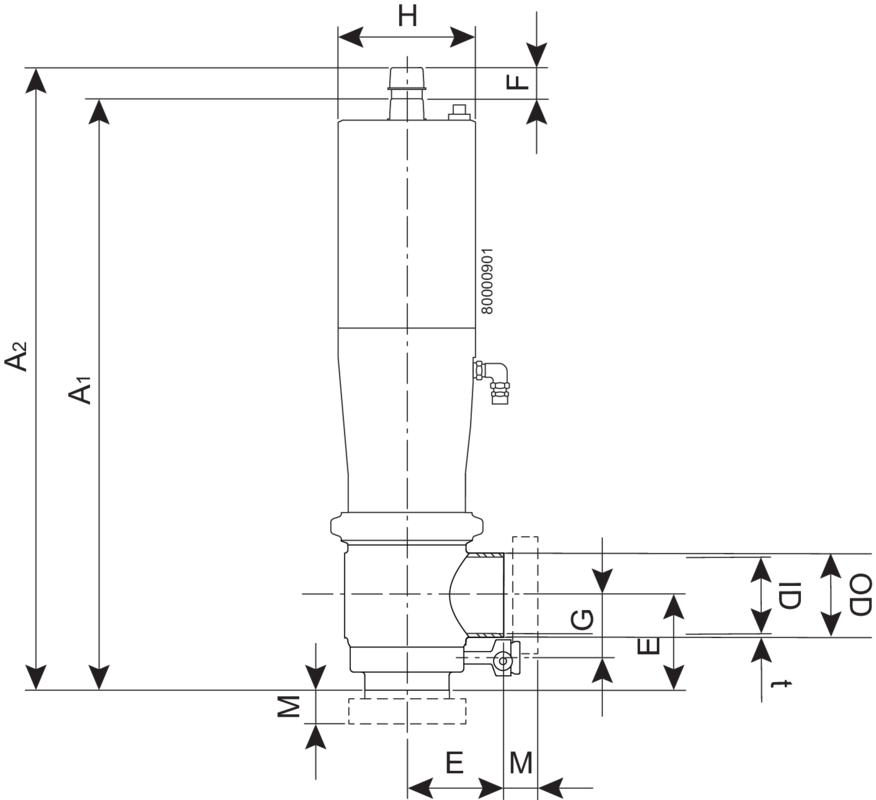

A1: 584
A2: 629
G: 84.5
E: 150
H: 199
J: 99.5
K: 58.5
T: 2
Inner diameter: 150
Outer diameter: 154
