VALVE SMP-BC W DN100 20 NC
VALVE SMP-BC W DN100 20 NC
Roll over image to zoom in Click on image to zoom
VALVE SMP-BC W DN100 20 NC
VALVE SMP-BC W DN100 20 NC

VALVE SMP-BC W DN100 20 NC

Manufacturer:Alfa Laval
Alsis code: 5252
Item number: 9613885536
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 8481804090CN
Delivery time:On request
  • Size din: DN100
  • Elastomer: EPDM
  • Connection type: Welding ends
  • Port configuration: 20
  • Inside surface quality: Ra ≤ 1.6 μm
  • Spring: Strong
  • Item Weight: 20.94
  • Country of origin: China
Price:
Login to view price

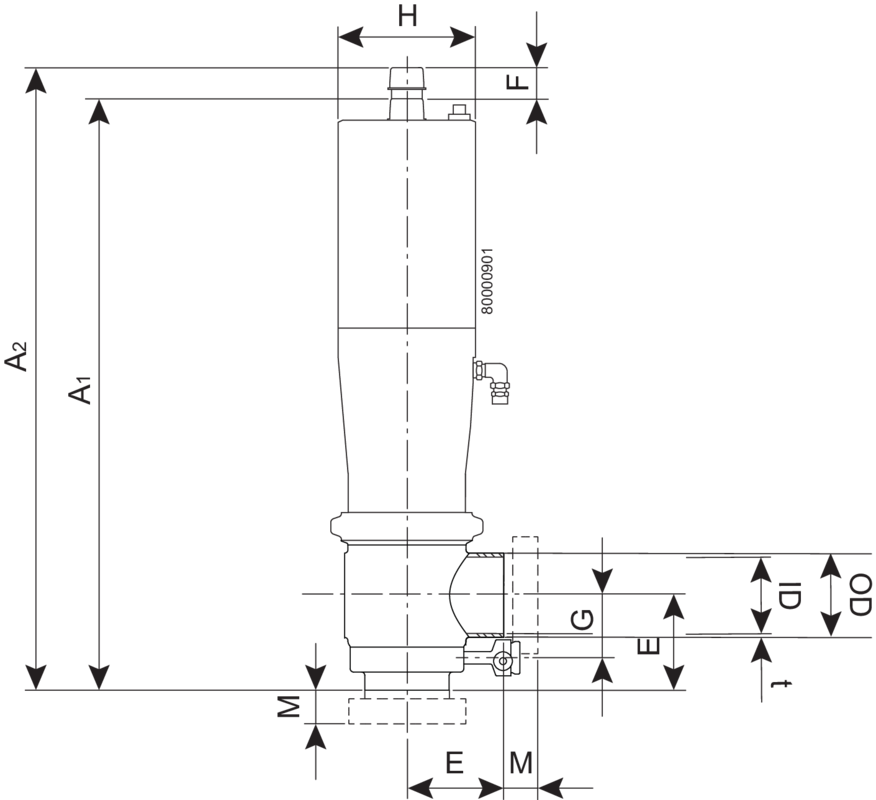

A1: 526
A2: 558
G: 59.5
E: 133.5
H: 133

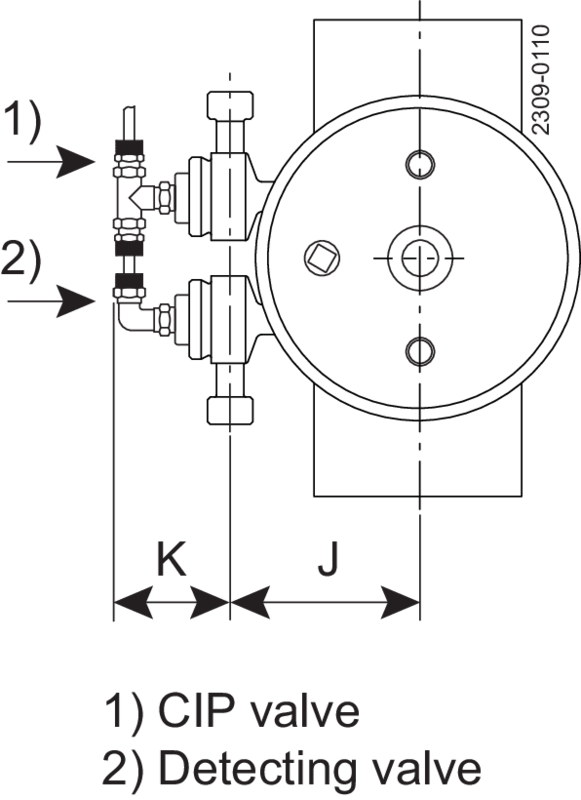

J: 84.3
K: 63
T: 2
Inner diameter: 100
Outer diameter: 104
