VALVE SMP-BC W 76 11-180
VALVE SMP-BC W 76 11-180
Roll over image to zoom in Click on image to zoom
VALVE SMP-BC W 76 11-180
VALVE SMP-BC W 76 11-180

VALVE SMP-BC W 76 11-180

Manufacturer:Alfa Laval
Alsis code: 5252
Item number: 9614461702
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 84818073
Delivery time:On request
  • Size iso: 76.1
  • Elastomer: EPDM
  • Connection type: Welding ends
  • Port configuration: 11
  • Inside surface quality: Ra ≤ 1.6 μm
  • Port degree: 180
  • Spring: Standard
  • Item Weight: 14.4
  • Country of origin: China
Price:
Login to view price

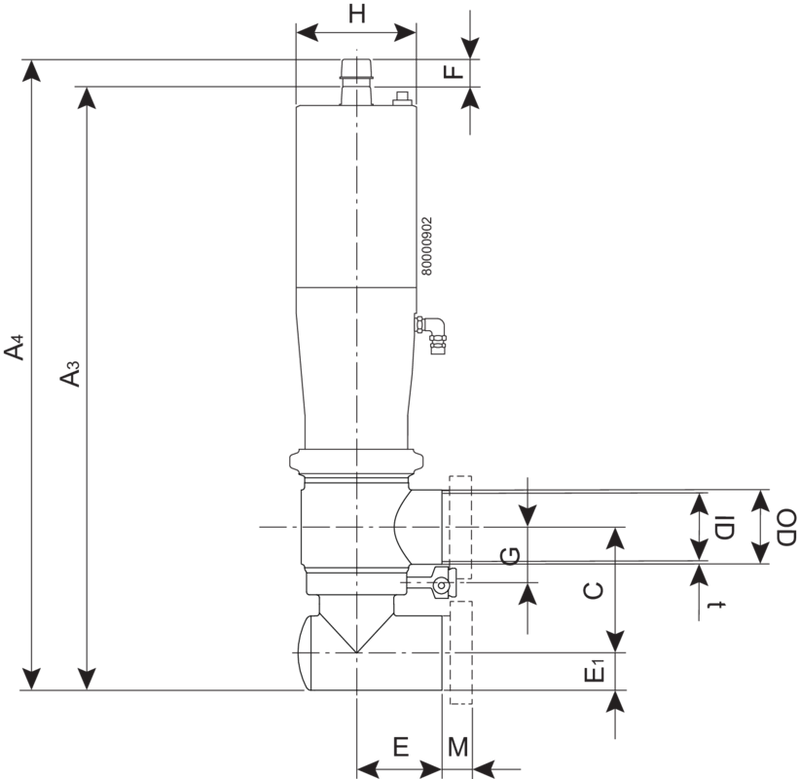

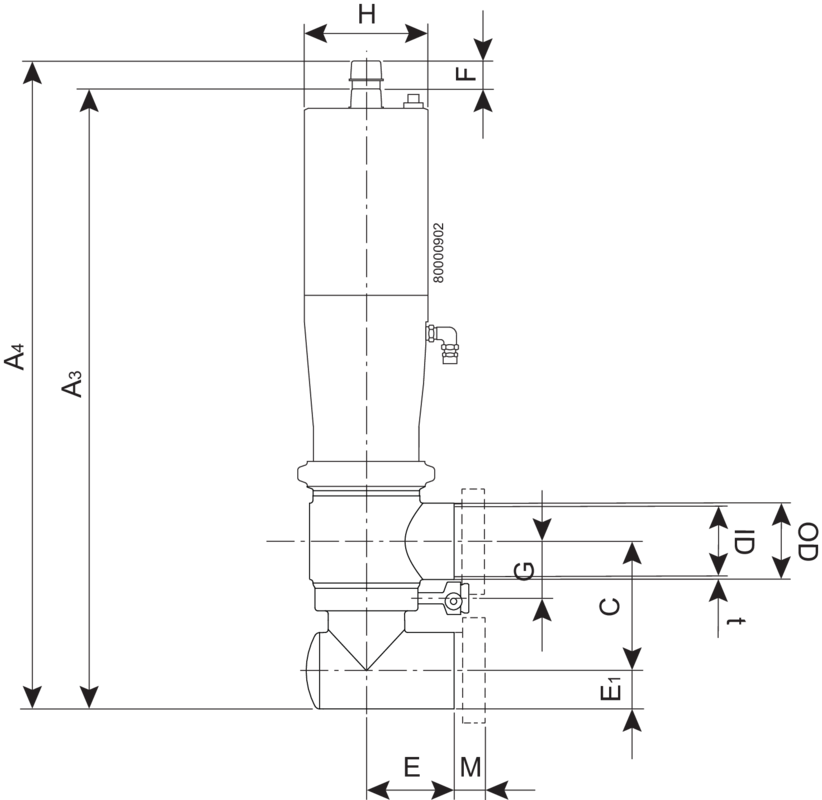

A1: 455
A2: 487
G: 45.6
E: 87.3
H: 133

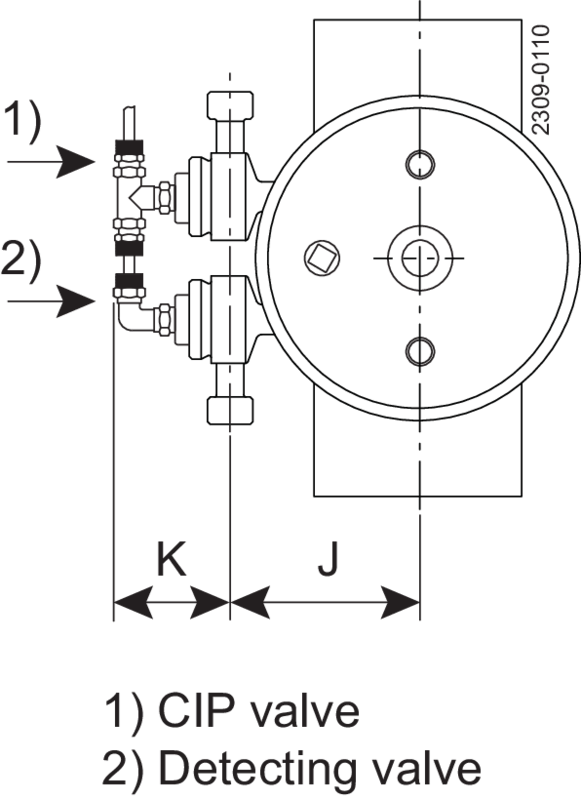

J: 66.6
K: 63
T: 2
Inner diameter: 72.1
Outer diameter: 76.1
