VALVE SMP-BC W 63.5 21-90
VALVE SMP-BC W 63.5 21-90
Roll over image to zoom in Click on image to zoom
VALVE SMP-BC W 63.5 21-90
VALVE SMP-BC W 63.5 21-90

VALVE SMP-BC W 63.5 21-90

Manufacturer:Alfa Laval
Alsis code: 5252
Item number: 9614461720
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 84818073
Delivery time:On request
  • Size iso: 63.5
  • Elastomer: EPDM
  • Connection type: Welding ends
  • Port configuration: 21
  • Inside surface quality: Ra ≤ 1.6 μm
  • Port degree: 90
  • Spring: Standard
  • Item Weight: 9.54
  • Country of origin: China
Price:
Login to view price

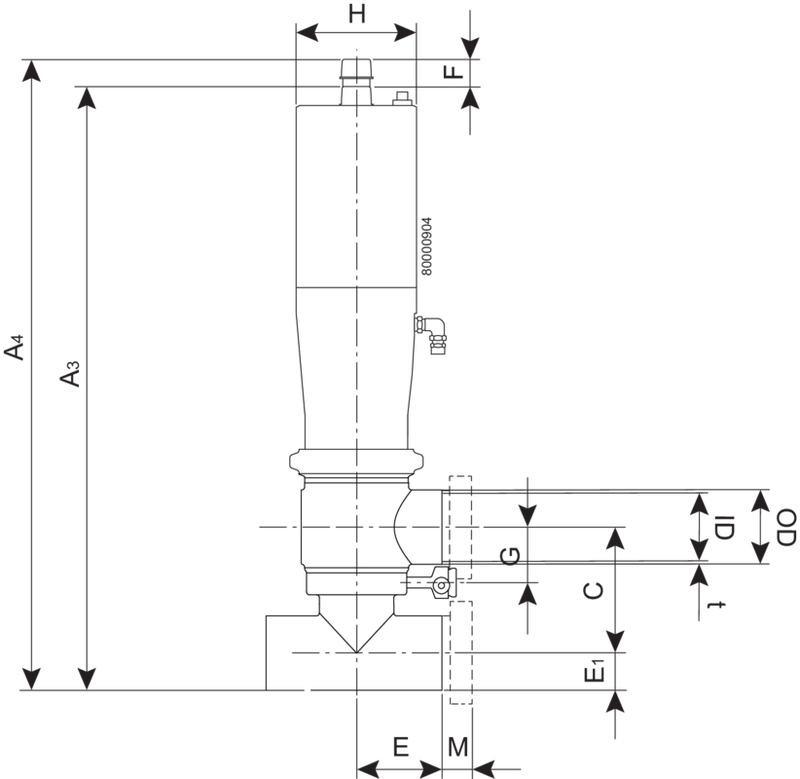

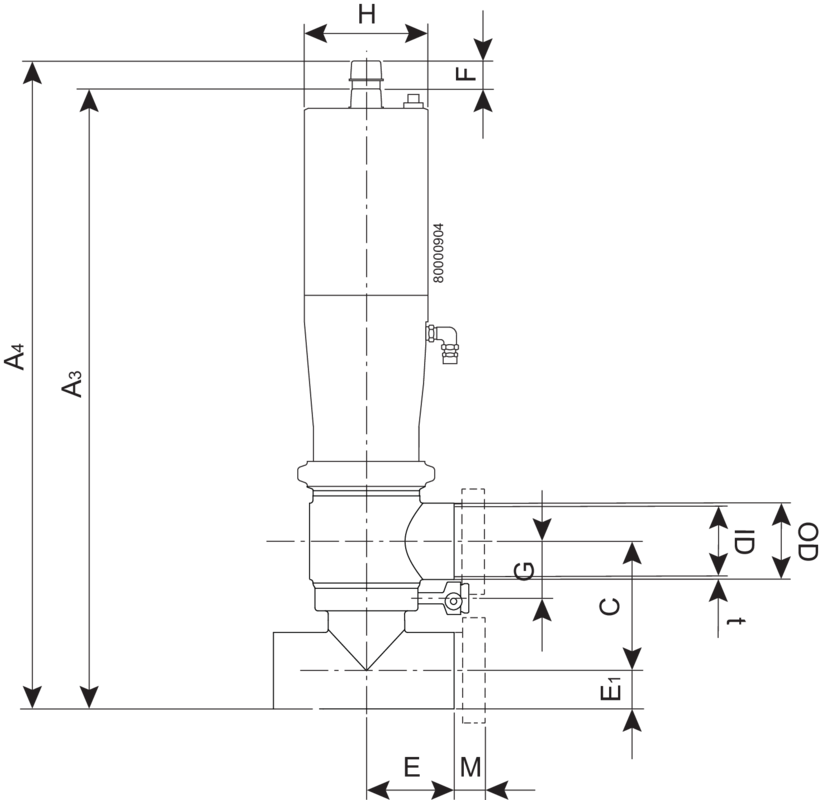

A1: 433
A2: 458
G: 39.7
E: 82.3
H: 133
J: 57
K: 63
T: 1.6
Inner diameter: 60.3
Outer diameter: 63.5
