VALVE SMP-BC W 51 11 NC EPDM
VALVE SMP-BC W 51 11 NC EPDM
Roll over image to zoom in Click on image to zoom
VALVE SMP-BC W 51 11 NC EPDM
VALVE SMP-BC W 51 11 NC EPDM

VALVE SMP-BC W 51 11 NC EPDM

Manufacturer:Alfa Laval
Alsis code: 5252
Item number: 9614466451
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 84818073
Delivery time:On request
  • Size iso: 51
  • Elastomer: EPDM
  • Connection type: Welding ends
  • Port configuration: 11
  • Inside surface quality: Ra 0.8 μm
  • Port degree: 180
  • Spring: Standard
  • Item Weight: 18.63
  • Country of origin: China
Price:
Login to view price

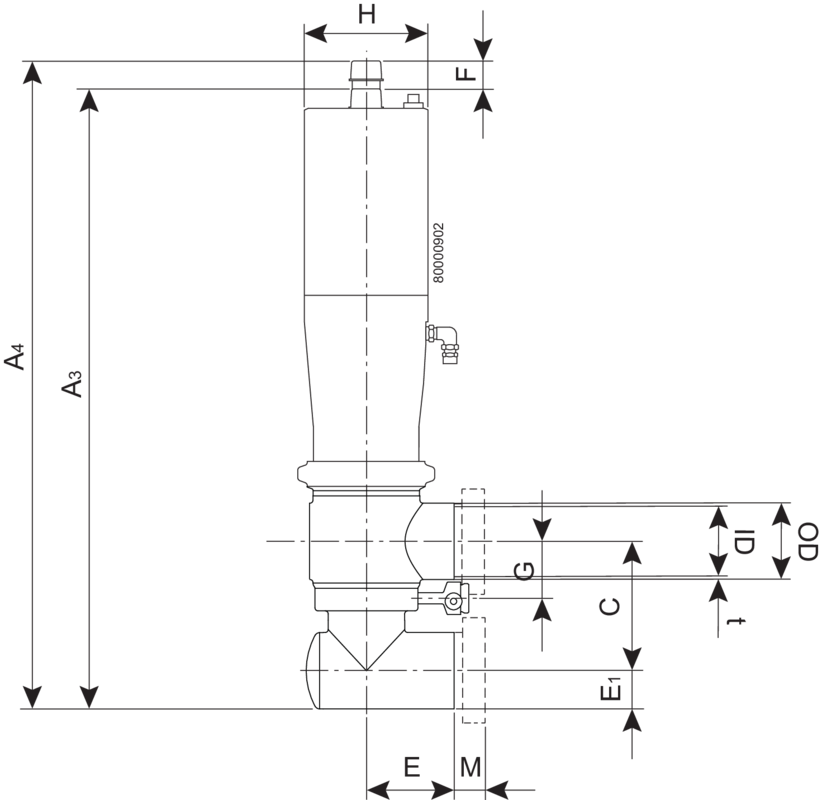

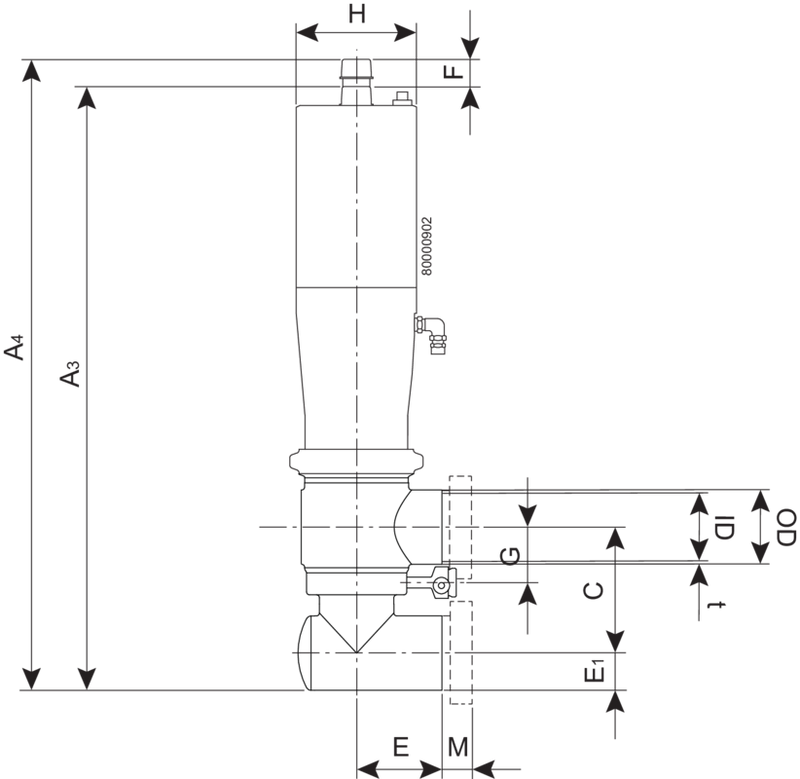

A1: 355
A2: 380
G: 33.3
E: 61.5
H: 89

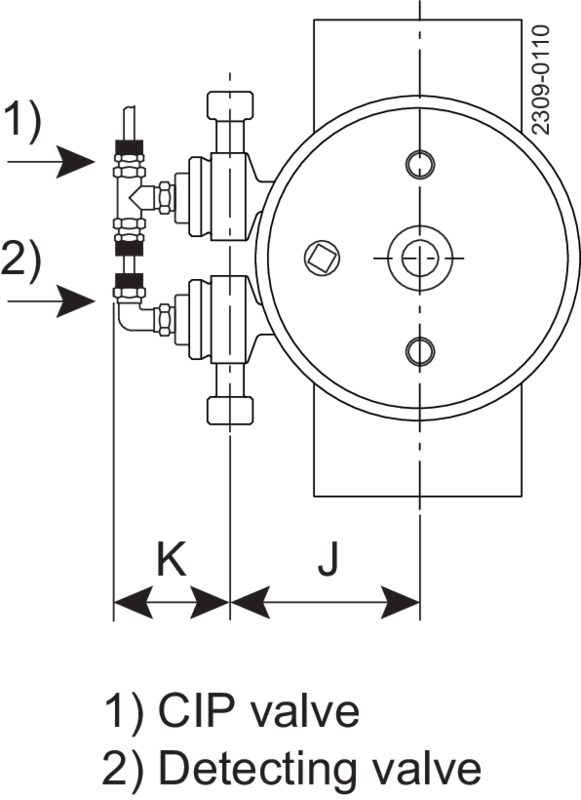

J: 46.7
K: 63
T: 1.6
Inner diameter: 47.6
Outer diameter: 50.8
