Manufacturer:Alfa Laval
Alsis code: 5009
Item number: 246096
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 7307290090
Delivery time:On request
  • Range: Bends
  • Product Model: Tri-Clover 3A Bends 90
  • Size: 3
  • Material: 316L
  • Finish: #7 (ID=32/OD=32µin)
  • Connection Type: TriClamp and Weld
  • Standard: 3A
  • Design: L2CM
  • Item Weight: 0.99
  • Country of Origin: China
Price:
Login to view price

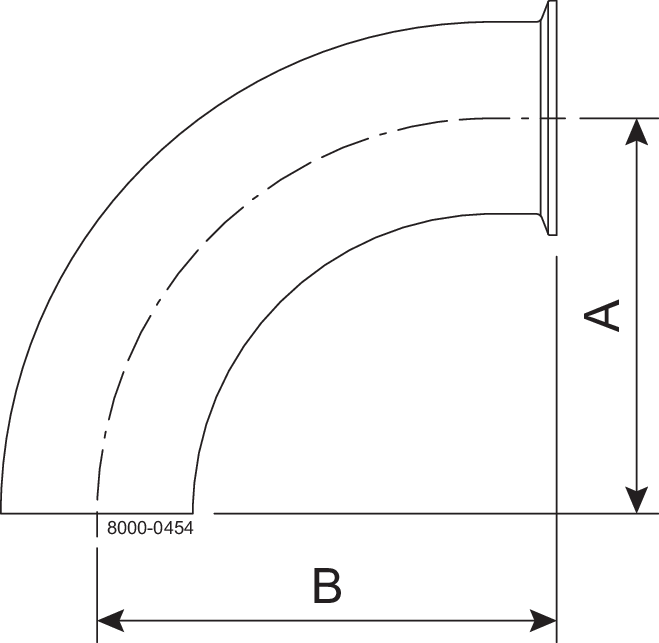

A: 160.30
B: 173.00
OD/ID x t: 76.20/72.90 x 1.65
OD1/ID1 x t1: 76.20/72.90 x 1.65
