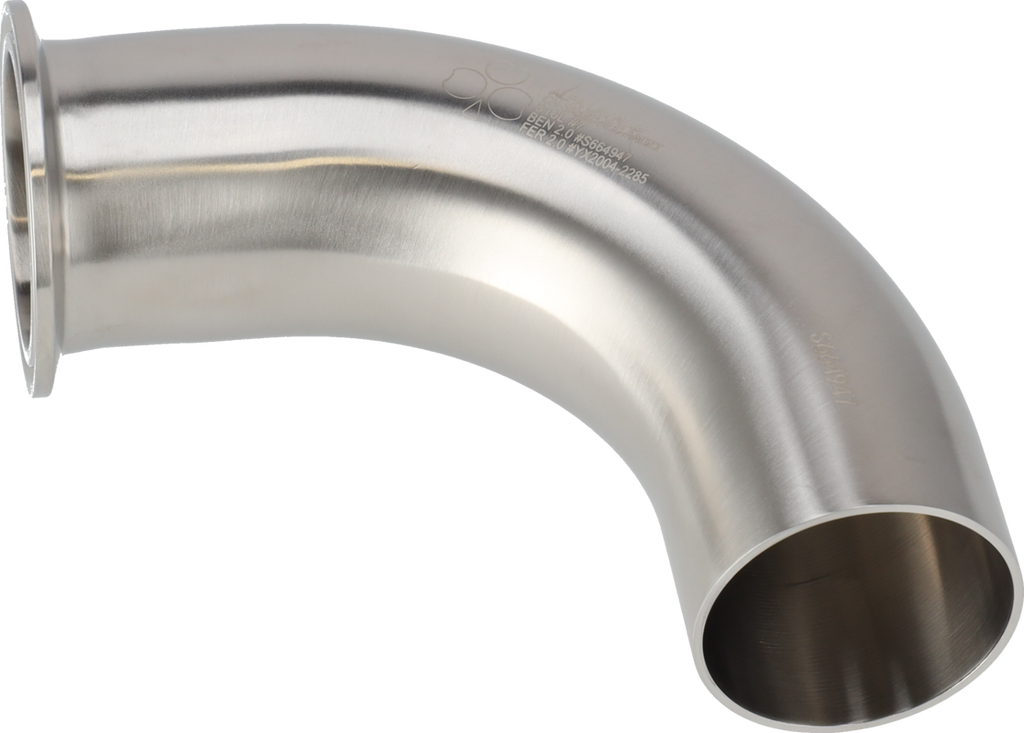

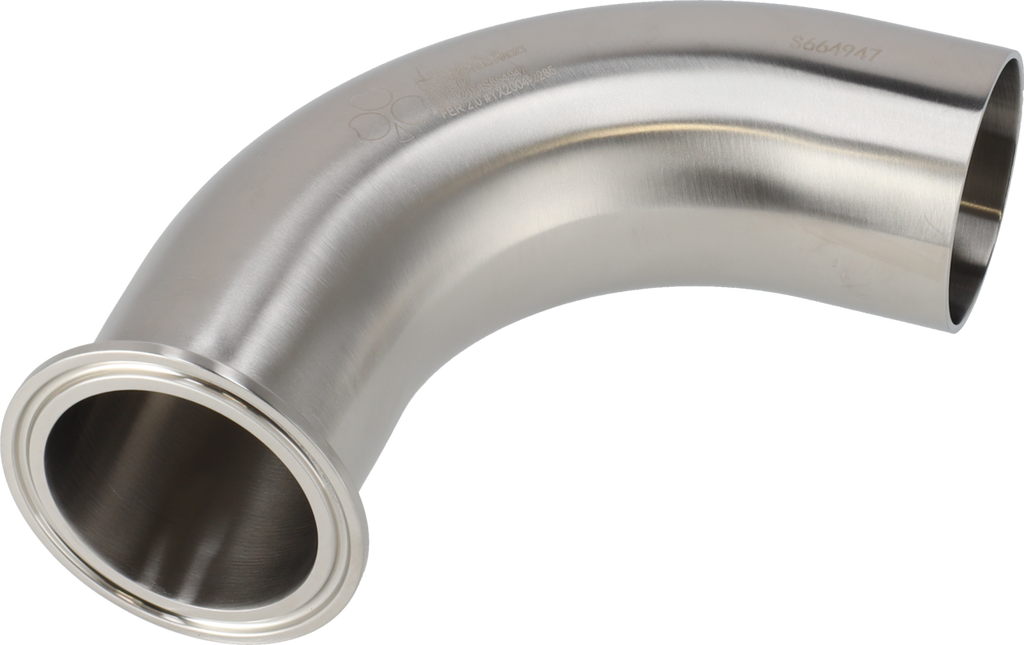

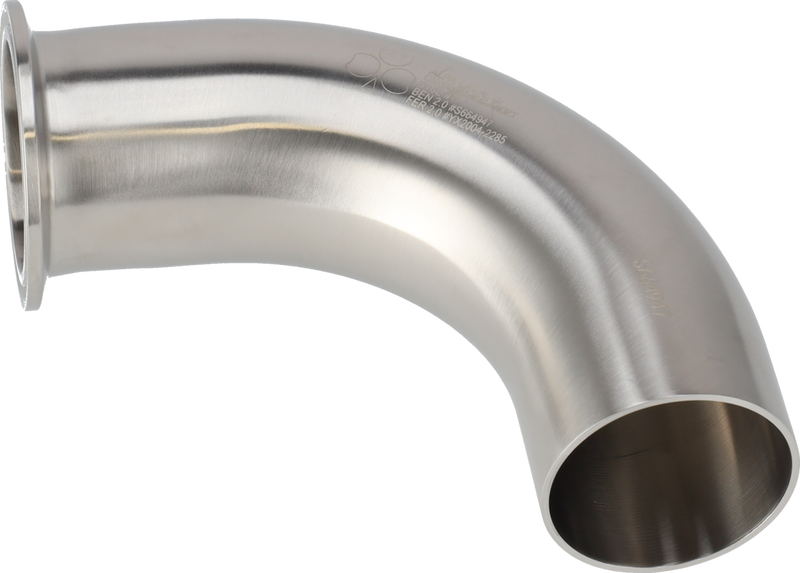

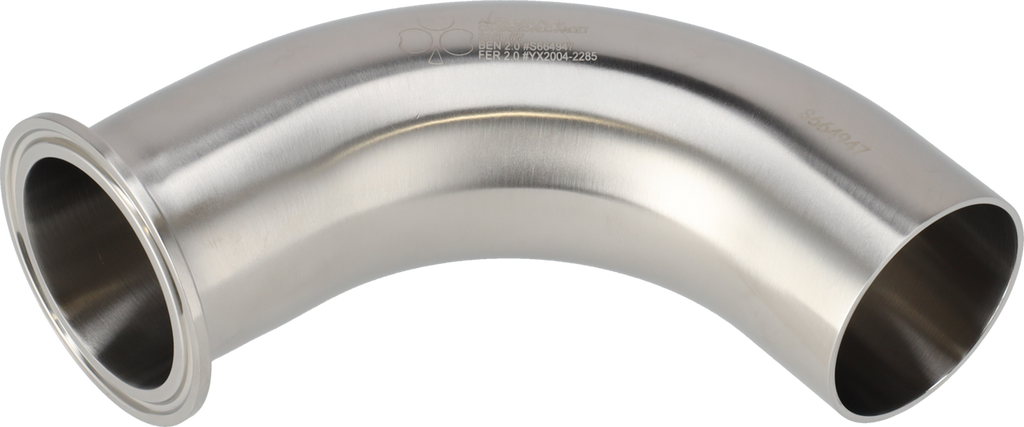

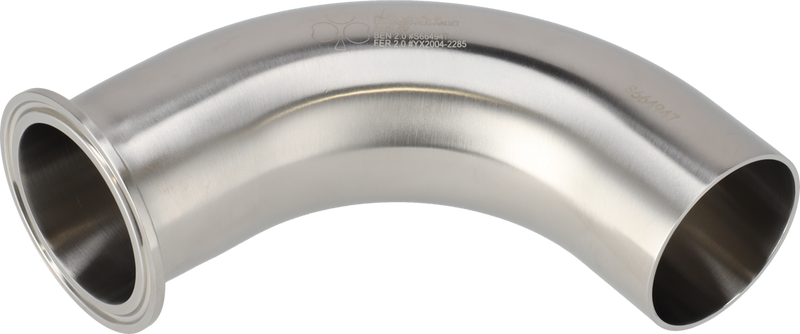

L2CM-2 1/2-316L-7

Manufacturer:Alfa Laval
Alsis code: 5009
Item number: 246100
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 7307290090
Delivery time:On request

  • Range: Bends
  • Product Model: Tri-Clover 3A Bends 90
  • Size: 2.5
  • Material: 316L
  • Finish: #7 (ID=32/OD=32µin)
  • Connection Type: TriClamp and Weld
  • Standard: 3A
  • Design: L2CM
  • Item Weight: 0.65
  • Country of Origin: China

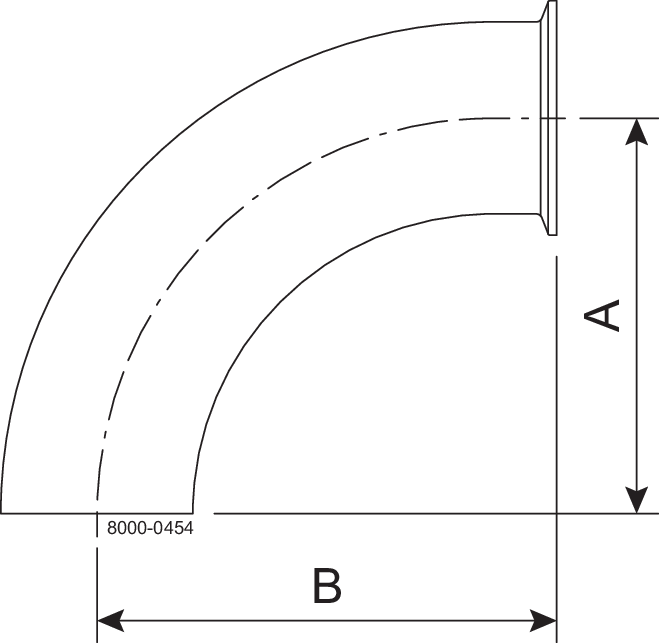

A: 131.80
B: 144.50
OD/ID x t: 63.50/60.20 x 1.65
OD1/ID1 x t1: 63.50/60.20 x 1.65
