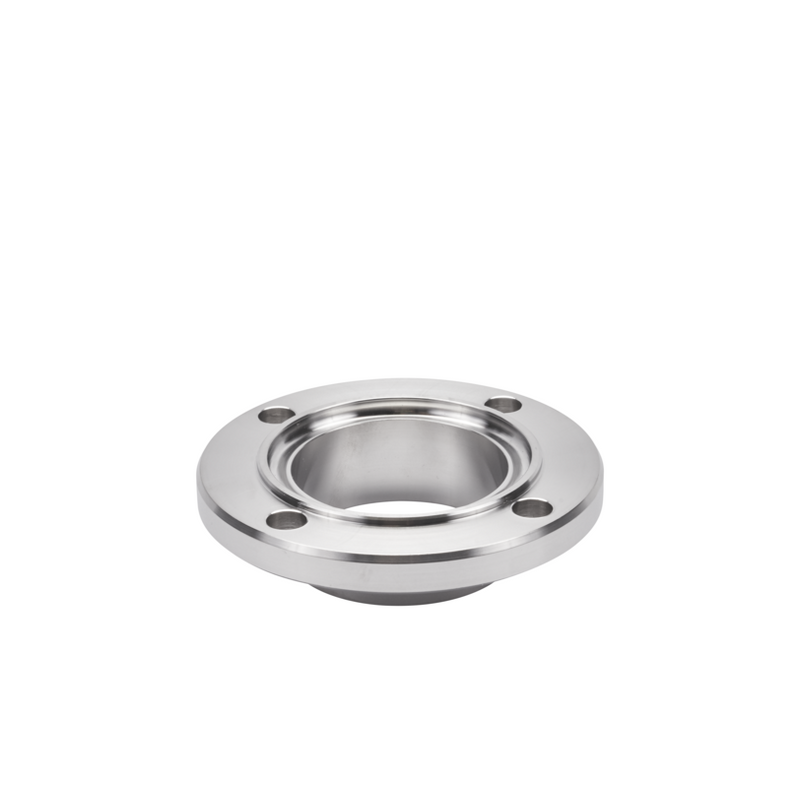

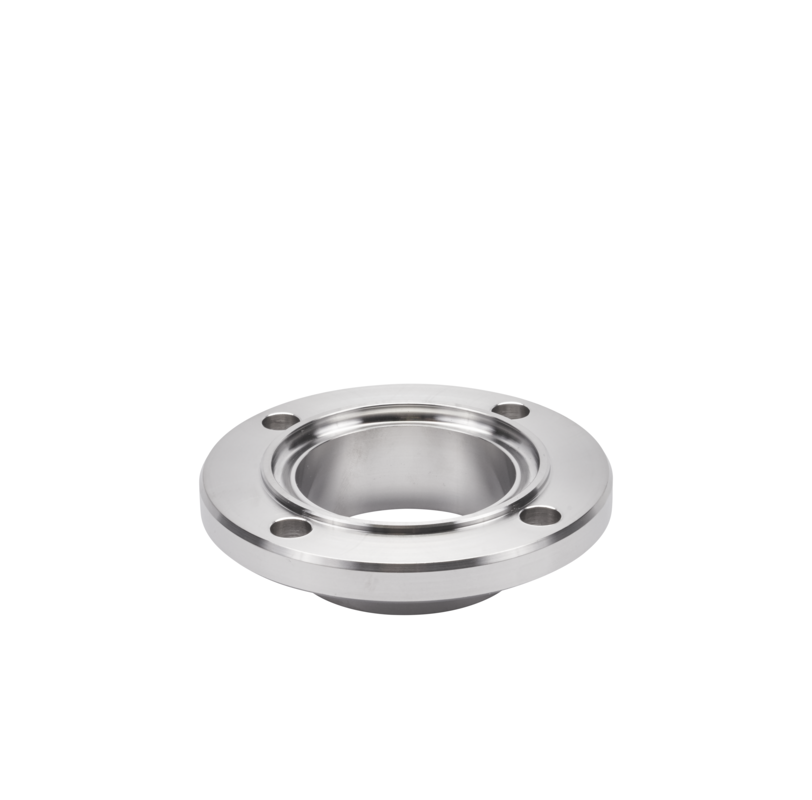

FLANGE NF DN50 H3 1.4307
FLANGE NF DN50 H3 1.4307
Roll over image to zoom in Click on image to zoom
FLANGE NF DN50 H3 1.4307
FLANGE NF DN50 H3 1.4307

FLANGE NF DN50 H3 1.4307

Manufacturer:Alfa Laval
Alsis code: 5057
Item number: 8010000391
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 73072100
Delivery time:4-5 days
  • Range: Flanges
  • Product Model: DIN EN 10357-A Flange Unions DIN 11853-2
  • Size: DN50
  • Material: 1.4307 (304L)
  • Finish: H3 (ID=0.8/OD=1.0)
  • Connection Type: Weld ends
  • Standard: DIN 11853-2
  • Design: NF groove
  • Item Weight: 0.418
  • Country of Origin: China
Price:
Login to view price

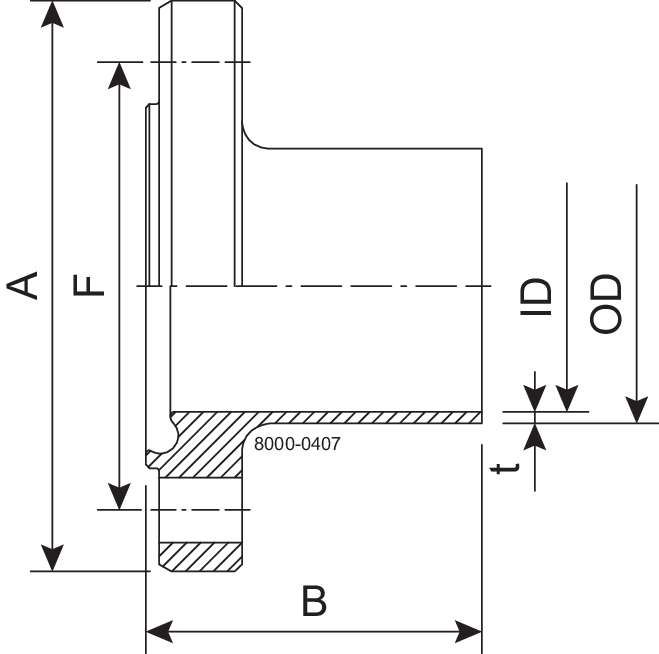

A: 94.00
B: 25.50
F: 77.00
OD/ID x t: 53.00/50.00 x 1.50
