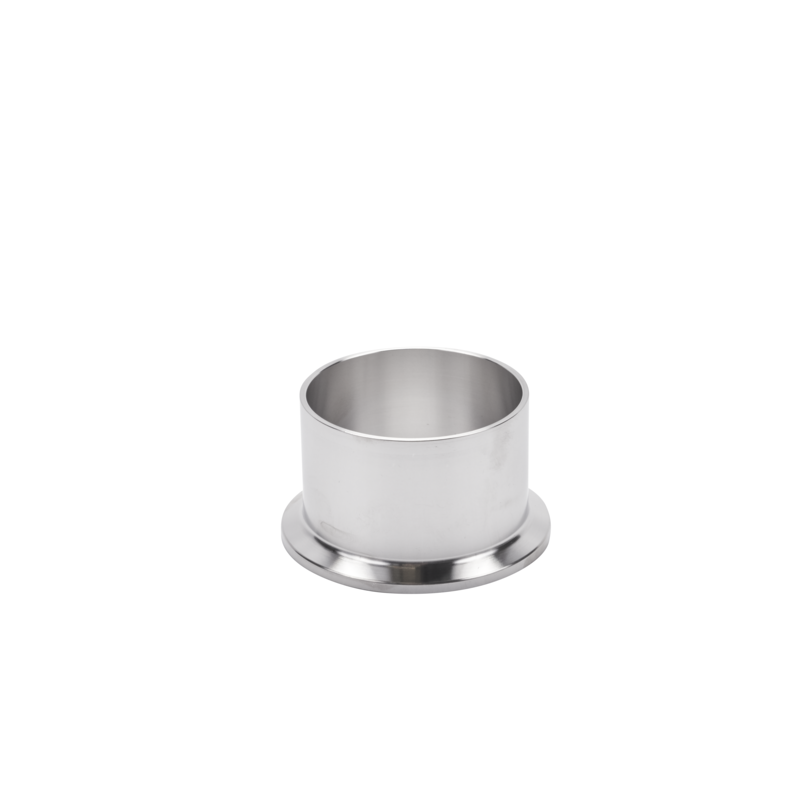

FERRULE KL DN20 H3 1.4404
FERRULE KL DN20 H3 1.4404
Roll over image to zoom in Click on image to zoom
FERRULE KL DN20 H3 1.4404
FERRULE KL DN20 H3 1.4404

FERRULE KL DN20 H3 1.4404

Manufacturer:Alfa Laval
Alsis code: 5054
Item number: 9613444003
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 73072980
Delivery time:4-5 days
  • Range: Ferrules
  • Product Model: DIN EN 10357-A Clamp Unions DIN 32676
  • Size: DN20
  • Material: 1.4404 (316L)
  • Finish: H3 (ID=0.8/OD=1.0)
  • Connection Type: TriClamp and Weld
  • Standard: DIN 32676
  • Design: KL long
  • Item Weight: 45
  • Country of Origin: China
Price:
Login to view price

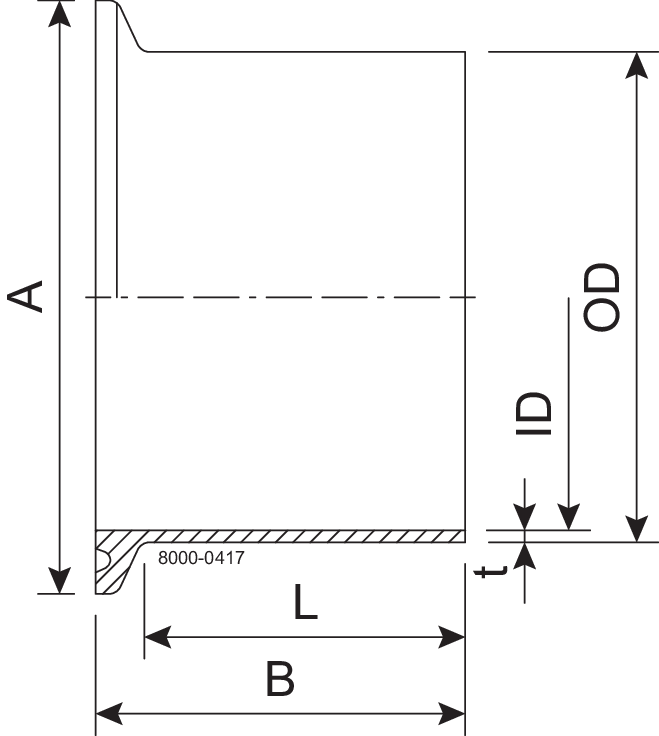

A: 34.00
B: 28.60
L: 25.00
OD/ID x t: 23.00/20.00 x 1.50
OD1/ID1 x t1: 23.00/20.00 x 1.50
