Manufacturer:Alfa Laval
Alsis code: 5036
Item number: 9634002624
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 7307290090
Delivery time:4-5 days

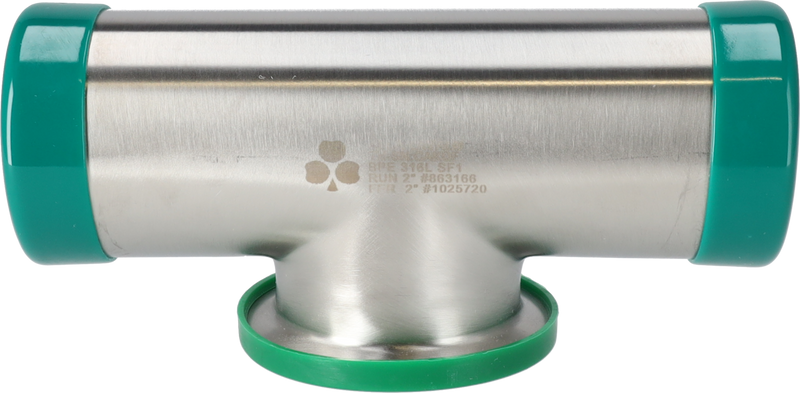

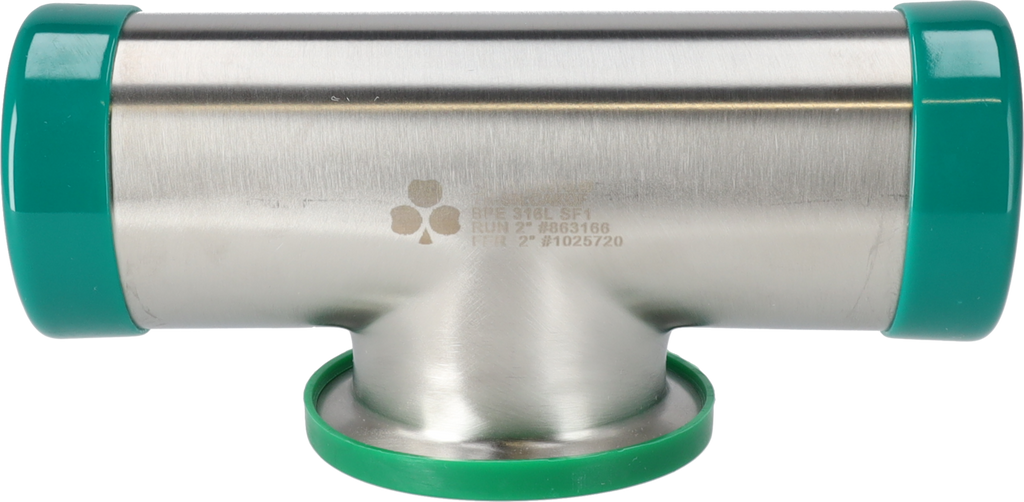

  • Range: Tees
  • Product Model: Tri-Clover BPE Tees Short
  • Size: 2.5
  • Material: 316L
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: Weld and Weld and Short TriClamp
  • Standard: ASME BPE
  • Design: B7WWMS
  • Item Weight: 1,166
  • Country of Origin: Thailand
Price:
Login to view price

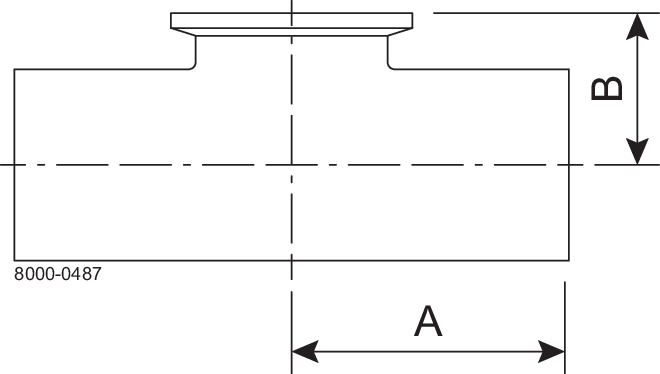

A: 79.40
B: 47.60
OD/ID x t: 63.50/60.20 x 1.65
OD1/ID1 x t1: 63.50/60.20 x 1.65
