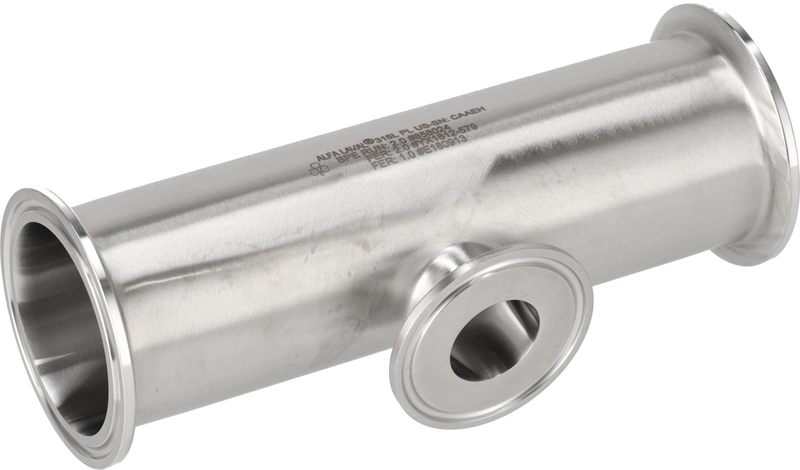

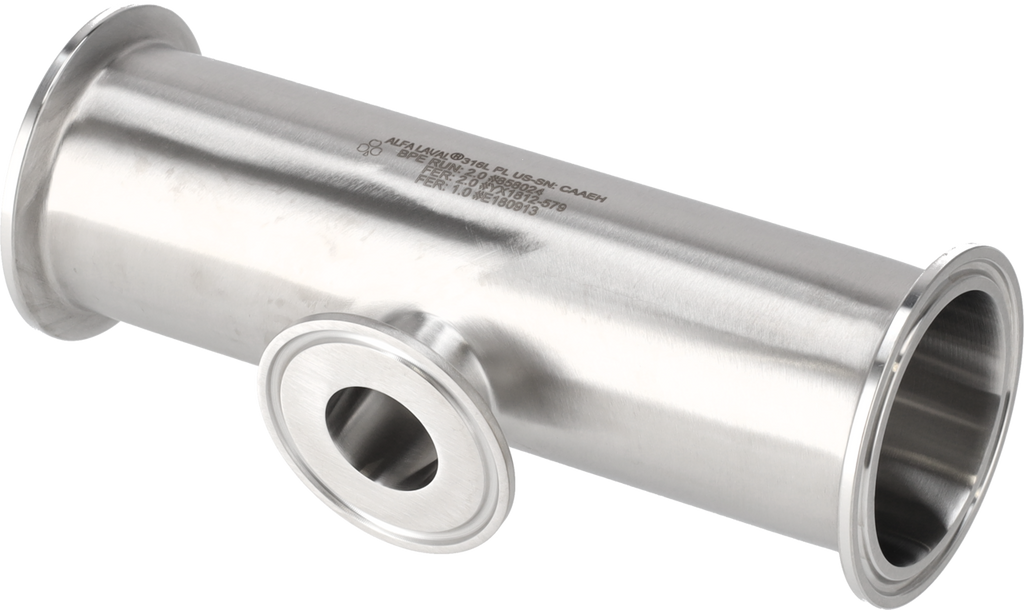

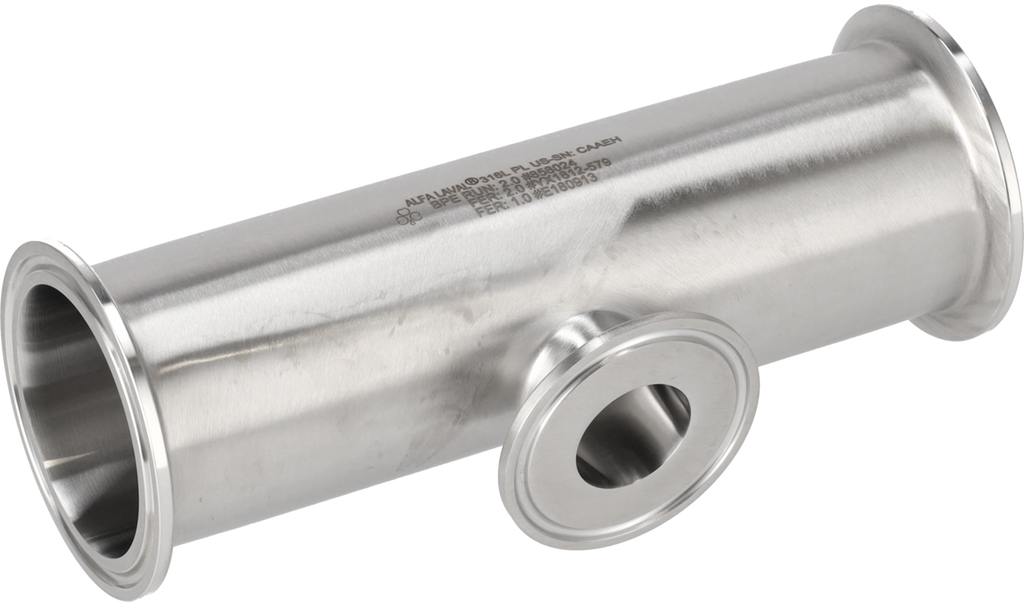

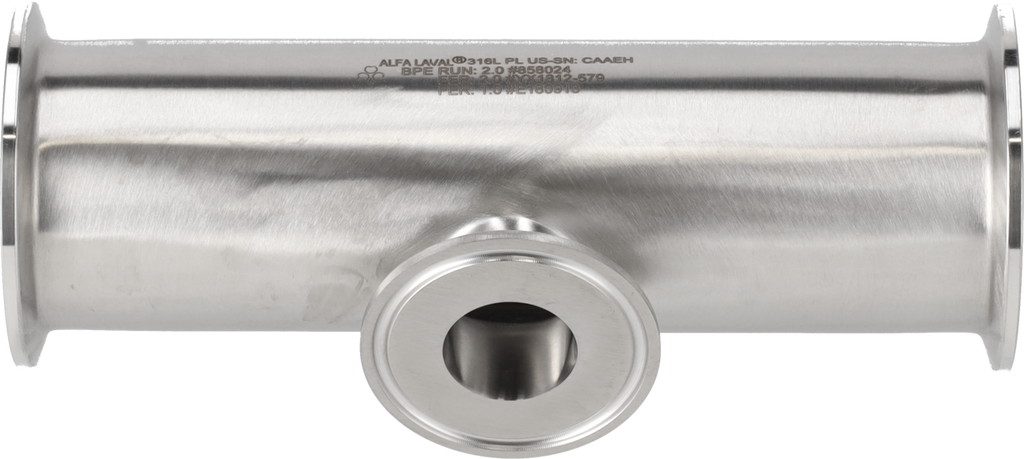

B7RMPS-1 1/2X1/2-316L-PL
B7RMPS-1 1/2X1/2-316L-PL
B7RMPS-1 1/2X1/2-316L-PL
B7RMPS-1 1/2X1/2-316L-PL
Roll over image to zoom in Click on image to zoom
B7RMPS-1 1/2X1/2-316L-PL
B7RMPS-1 1/2X1/2-316L-PL
B7RMPS-1 1/2X1/2-316L-PL
B7RMPS-1 1/2X1/2-316L-PL

B7RMPS-1 1/2X1/2-316L-PL

Manufacturer:Alfa Laval
Alsis code: 5037
Item number: 9634003946
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 73072390
Delivery time:On request
  • Range: Tees
  • Product Model: Tri-Clover BPE Reducing Tees Short
  • Size: 1.5
  • Second Size: 0.5
  • Material: 316L
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: Clamp ends
  • Standard: ASME BPE
  • Design: B7RMPS
  • Item Weight: 0.67
  • Country of Origin: China
Price:
Login to view price

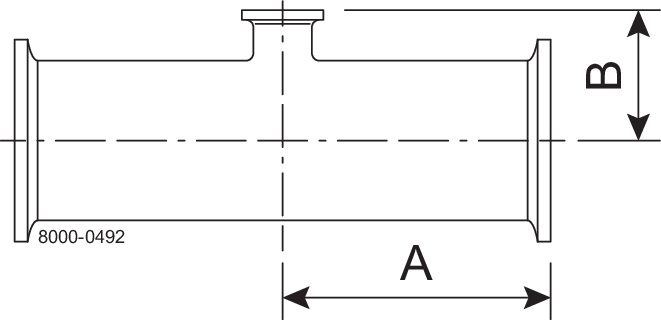

A: 73.00
B: 34.90
OD/ID x t: 38.10/34.80 x 1.65
OD1/ID1 x t1: 38.10/34.80 x 1.65
OD2: 12.7
