Manufacturer:Alfa Laval
Alsis code: 5037
Item number: 9634043027
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 7307290090
Delivery time:4-5 days
  • Range: Tees
  • Product Model: Tri-Clover BPE Tees Equal
  • Size: 1
  • Material: 316L
  • Finish: SF4(PM) (ID=15EP/OD=32µin)
  • Connection Type: Clamp ends
  • Standard: ASME BPE
  • Design: B7MPS
  • Item Weight: 0.3
  • Country of Origin: China
Price:
Login to view price

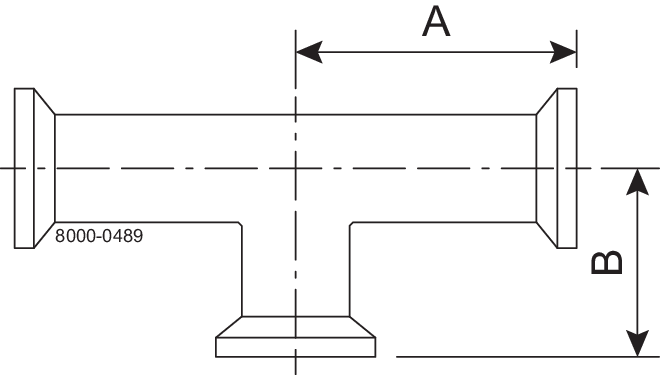

A: 66.70
B: 26.90
OD/ID x t: 25.40/22.10 x 1.65
OD1/ID1 x t1: 25.40/22.10 x 1.65
