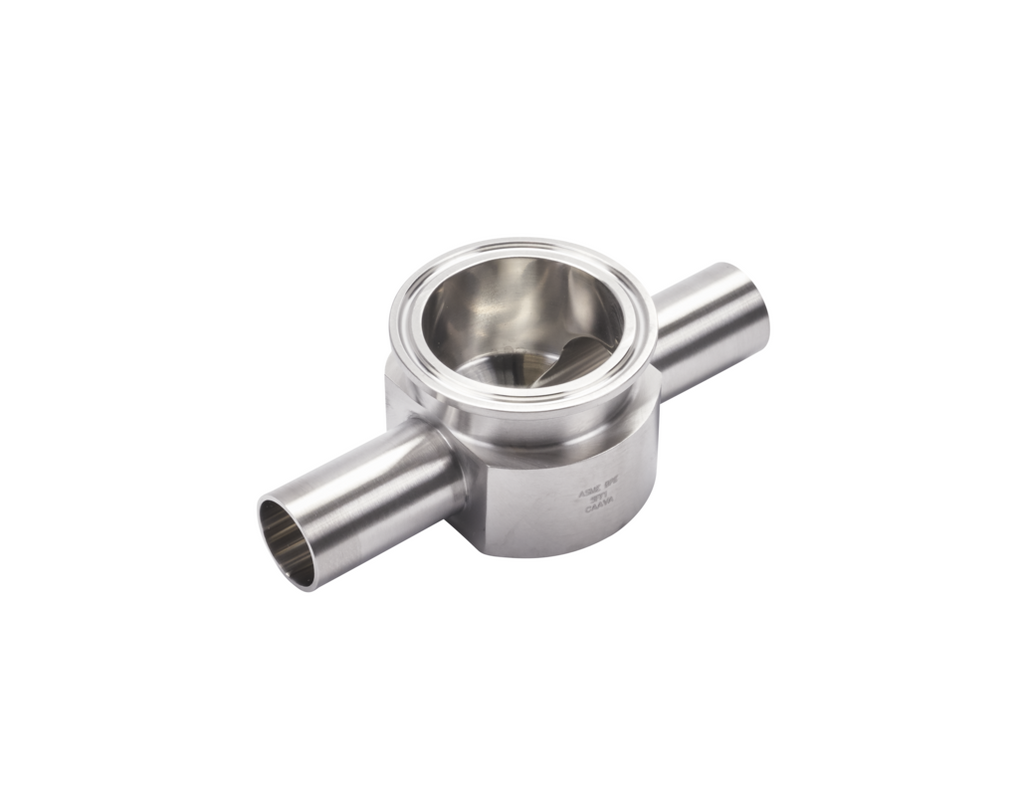

B7IWWMS-3/4 X 1 1/2-316L-PL
B7IWWMS-3/4 X 1 1/2-316L-PL
Roll over image to zoom in Click on image to zoom
B7IWWMS-3/4 X 1 1/2-316L-PL
B7IWWMS-3/4 X 1 1/2-316L-PL

B7IWWMS-3/4 X 1 1/2-316L-PL

Manufacturer:Alfa Laval
Alsis code: 5036
Item number: 241739
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 7307290090
Delivery time:4-5 days
  • Range: Tees
  • Product Model: Tri-Clover BPE Reducing Tees
  • Size: 0.75
  • Second Size: 1.5
  • Material: 316L
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: Weld and Weld and TriClamp
  • Standard: ASME BPE
  • Design: B7IWWMS
  • Item Weight: 0.44
  • Country of Origin: United States
Price:
Login to view price

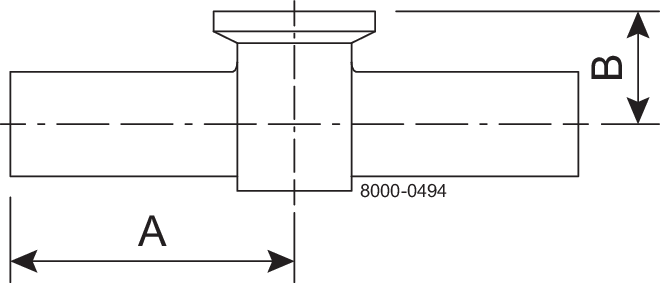

A: 63.50
B: 25.40
OD/ID x t: 19.05/15.75 x 1.65
OD1/ID1 x t1: 19.05/15.75 x 1.65
OD2: 38.1
