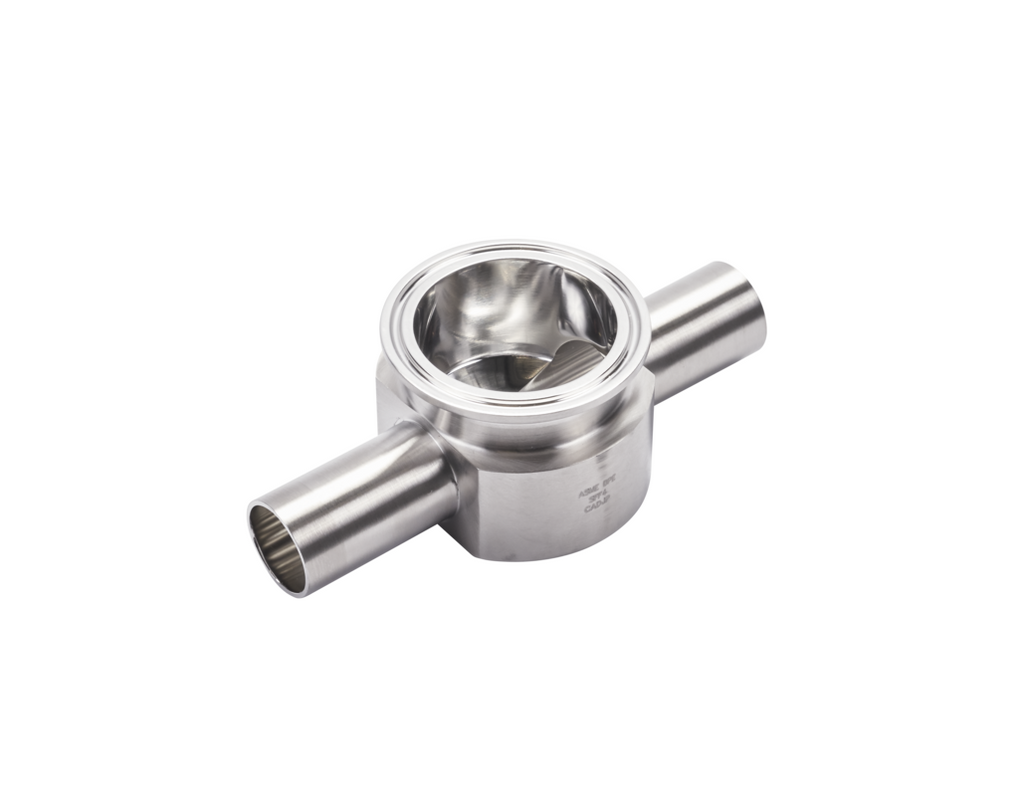

B7IWWMS-1 X 2-316L-PM
B7IWWMS-1 X 2-316L-PM
Roll over image to zoom in Click on image to zoom
B7IWWMS-1 X 2-316L-PM
B7IWWMS-1 X 2-316L-PM

B7IWWMS-1 X 2-316L-PM

Manufacturer:Alfa Laval
Alsis code: 5036
Item number: 241898
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 7307290090
Delivery time:On request
  • Range: Tees
  • Product Model: Tri-Clover BPE Reducing Tees
  • Size: 1
  • Second Size: 2
  • Material: 316L
  • Finish: SF4(PM) (ID=15EP/OD=32µin)
  • Connection Type: Weld and Weld and TriClamp
  • Standard: ASME BPE
  • Design: B7IWWMS
  • Item Weight: 826
  • Country of Origin: United States
Price:
Login to view price

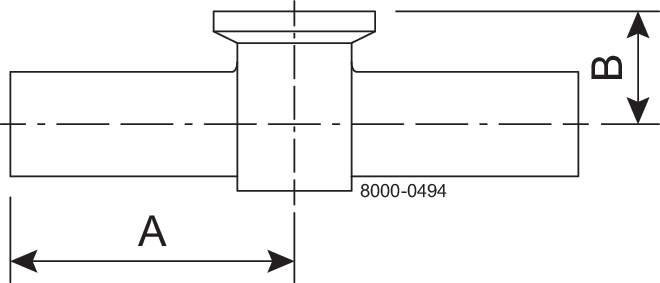

A: 69.80
B: 31.70
OD/ID x t: 25.40/22.10 x 1.65
OD1/ID1 x t1: 25.40/22.10 x 1.65
OD2: 50.8
