B2CMW-2 1/2-316L-PL
B2CMW-2 1/2-316L-PL
B2CMW-2 1/2-316L-PL
B2CMW-2 1/2-316L-PL
Roll over image to zoom in Click on image to zoom
B2CMW-2 1/2-316L-PL
B2CMW-2 1/2-316L-PL
B2CMW-2 1/2-316L-PL
B2CMW-2 1/2-316L-PL

B2CMW-2 1/2-316L-PL

Manufacturer:Alfa Laval
Alsis code: 5016
Item number: 9634001924
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 7307290090
Delivery time:4-5 days
  • Range: Bends
  • Product Model: Tri-Clover BPE Bends 90
  • Size: 2.5
  • Material: 316L
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: TriClamp and Weld
  • Standard: ASME BPE
  • Design: B2CMW
  • Item Weight: 0.63
  • Country of Origin: China
Price:
Login to view price

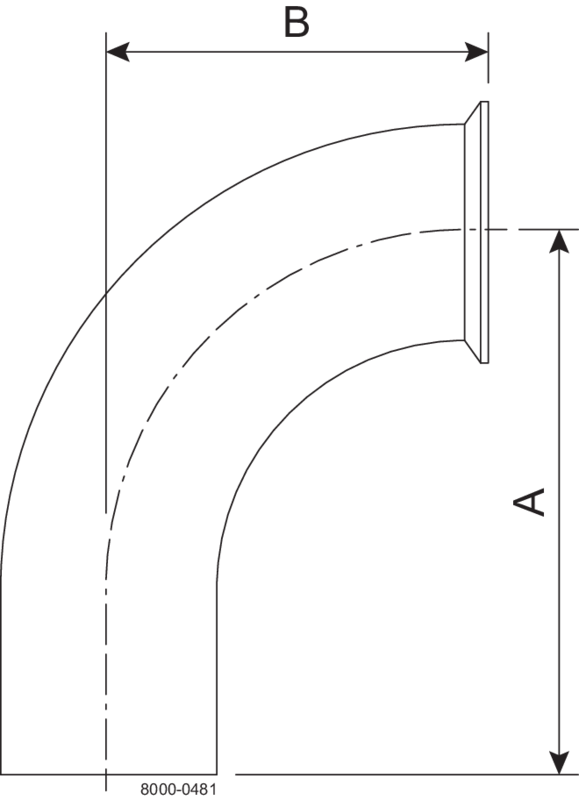

A: 139.70
B: 108.00
C: 108.0
OD/ID x t: 63.50/60.20 x 1.65
OD1/ID1 x t1: 63.50/60.20 x 1.65
