M220 - 1/2" No connections
M220 - 1/2" No connections
Roll over image to zoom in Click on image to zoom
M220 - 1/2" No connections
M220 - 1/2" No connections

M220 - 1/2" No connections

Manufacturer:ALFA LAVAL
Alsis code: 5325
Item number: 8010030583
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 0
Delivery time:On request

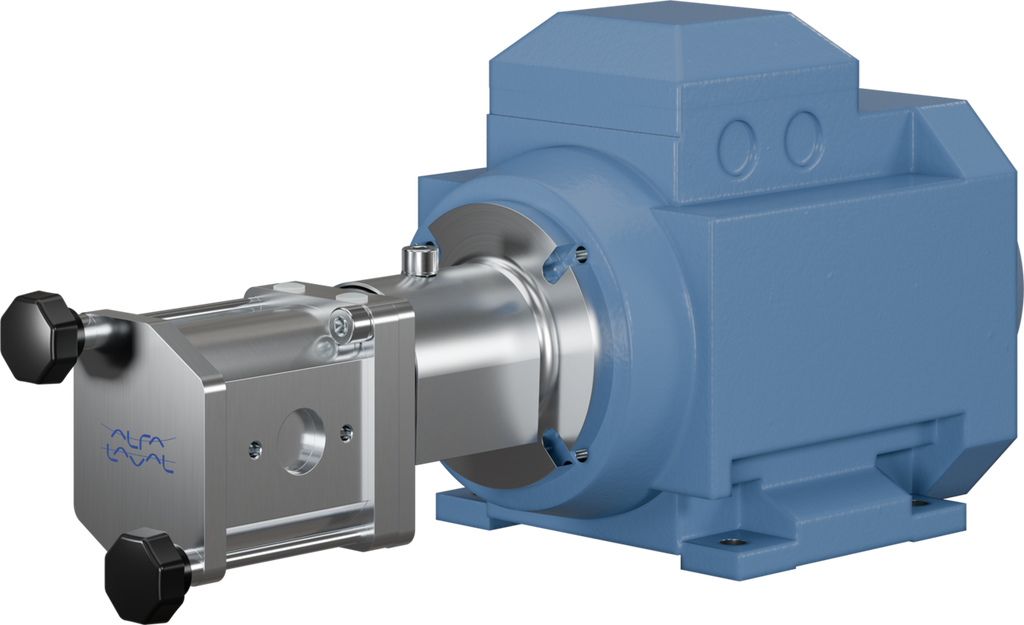

  • Product Model: M220
  • Motor Type: Mounted Unit
  • Mounting options: Motor 0.55 kW / 6 pole / IE3
  • Product seal: Stainless Steel / Carbon
  • Elastomer: FPM
  • Gears: SS/PTFE Impregnated - 60°C
  • Port size: ½
  • Port type: No connections
  • Weight: 14.4 kg
Price:
Login to view price
Dimension A 89 mm
Dimension B 159 mm
Dimension C 52 mm
Dimension D 57 mm
Dimension E 28 mm
Dimension F 20 mm
Dimension L 67 mm
Dimension K 70 mm
Dimension S 27 mm
Dimension T ø6.5 mm
Dimension H 5*3 mm
Dimension I 14 mm
Dimension J M6*12 mm
Dimension M 32mm
Dimension N 52 mm
Dimension Q 36 mm
