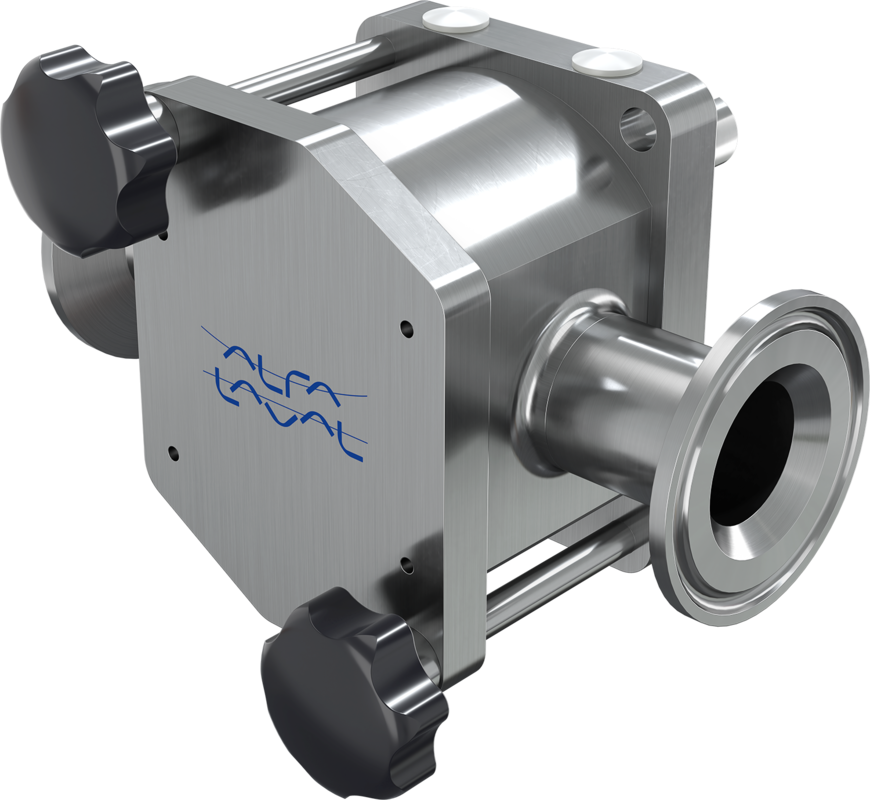

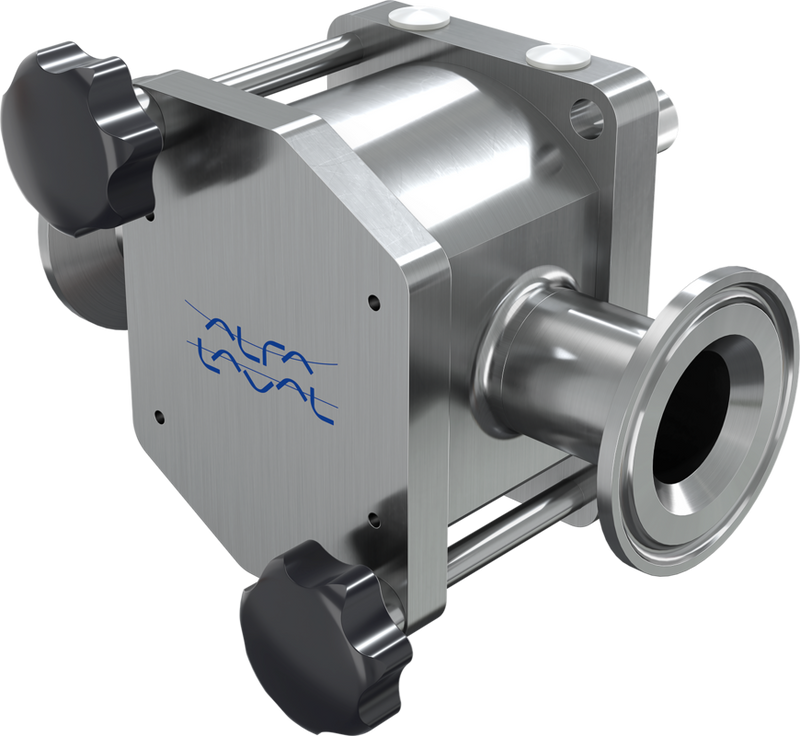

M210 PUMP 1" TRICLAMP
M210 PUMP 1" TRICLAMP
Roll over image to zoom in Click on image to zoom
M210 PUMP 1" TRICLAMP
M210 PUMP 1" TRICLAMP

M210 PUMP 1" TRICLAMP

Manufacturer:ALFA LAVAL
Alsis code: 5325
Item number: 9630046384
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 84136080
Delivery time:On request
  • Product Model: M210
  • Motor Type: Bareshaft
  • Product seal: Stainless Steel / Carbon
  • Elastomer: EPDM
  • Gears: SS/PTFE Impregnated - 60°C
  • Port size: 1
  • Port type: Male Tri-Clamp (ASME BPE)
  • Weight: 2.4 kg
Price:
Login to view price
Dimension A 75.5 mm
Dimension B 132 mm
Dimension C 52 mm
Dimension D 57 mm
Dimension E 28 mm
Dimension F 20 mm
Dimension L 67 mm
Dimension K 70 mm
Dimension S 27 mm
Dimension T ø6.5 mm
Dimension H 5*3 mm
Dimension I 13 mm
Dimension J M6*12 mm
Dimension M 32mm
Dimension N 52 mm
Dimension Q 36 mm
