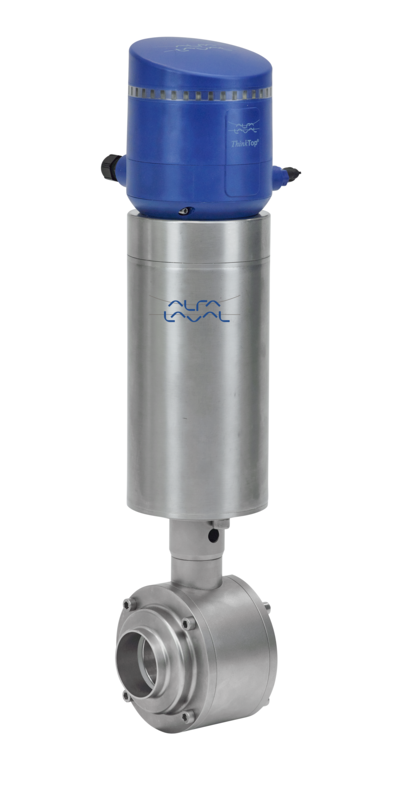

BALL VALVE SBV-ISO76,1-W/W-NC
Roll over image to zoom in Click on image to zoom
BALL VALVE SBV-ISO76,1-W/W-NC

BALL VALVE SBV-ISO76,1-W/W-NC

Manufacturer:Alfa Laval
Alsis code: 5272
Item number: 9612644138
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 84818081
Delivery time:On request
  • Product wetted steel part: 1.4404 (316L)
  • Size iso: 76.1
  • Elastomer: NBR
  • Connection type: Welding ends
  • Actuator function: Normally closed
  • Actuation: Pneumatic
  • Body combination: Actuator ø104 for ThinkTop
  • Item Weight: 0 kg
  • Country of origin: Germany
Price:
Login to view price
A: 159
B: 163
C: 180
E: 104
G1: 372
G2: 382
L: 9.89
T: 1.6
Inner Diameter: 72.9
Outer Diameter: 76.1
