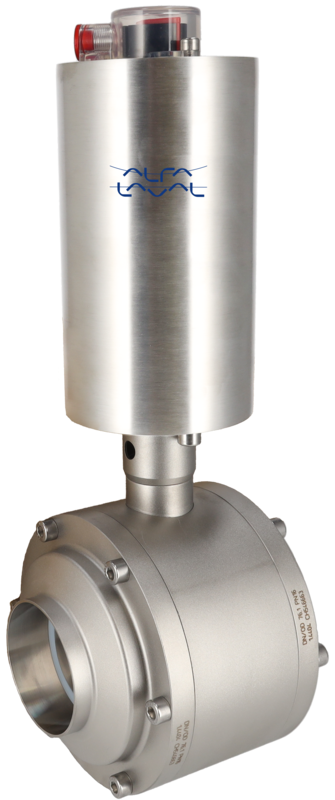

BALL VALVE SBV-ISO63,5-W/W-NC
BALL VALVE SBV-ISO63,5-W/W-NC
Roll over image to zoom in Click on image to zoom
BALL VALVE SBV-ISO63,5-W/W-NC
BALL VALVE SBV-ISO63,5-W/W-NC

BALL VALVE SBV-ISO63,5-W/W-NC

Manufacturer:Alfa Laval
Alsis code: 5272
Item number: 9612644088
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 84818081
Delivery time:On request
  • Product wetted steel part: 1.4404 (316L)
  • Size iso: 63.5
  • Elastomer: FPM (Viton)
  • Connection type: Welding ends
  • Actuator function: Normally closed
  • Actuation: Pneumatic
  • Body combination: Standard actuator ø104
  • Item Weight: 1.8 kg
  • Country of origin: Germany
Price:
Login to view price
A: 130
B: 125
E: 104
F: 335
L: 7.48
T: 1.6
Inner Diameter: 60.3
Outer Diameter: 63.5
