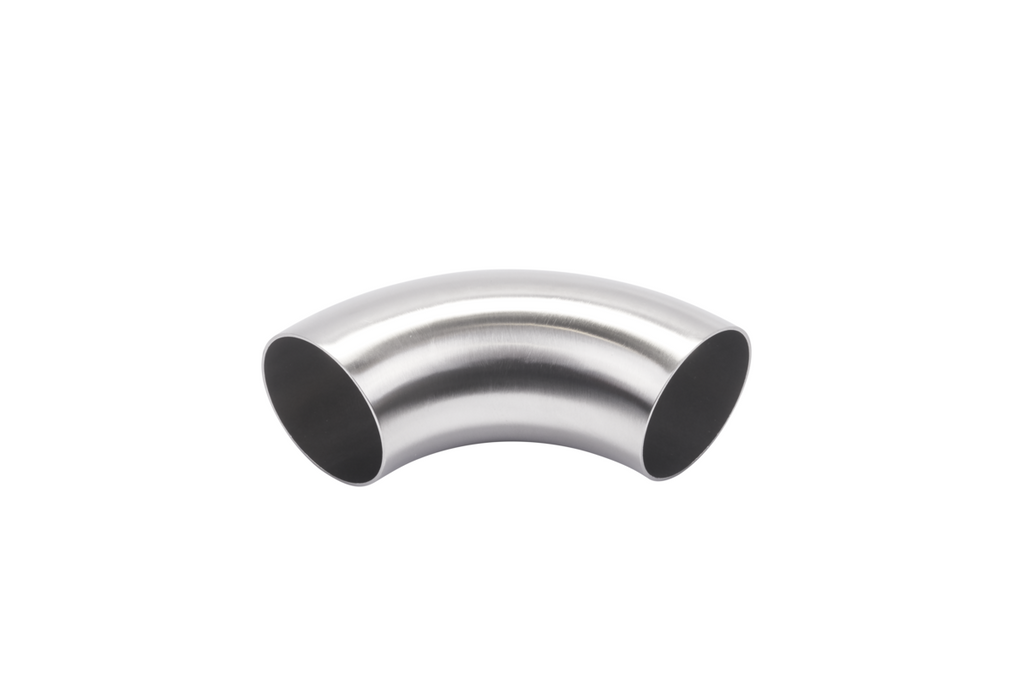

BEND 90 DEG. W 51MM 316L

Manufacturer:Alfa Laval
Alsis code: 5004
Item number: 9613404209
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 7307230000
Delivery time:On request

  • Range: Bends
  • Product Model: ISO EN 10357-D Bends 90
  • Size: 51.0 mm
  • Material: 1.4404 (316L)
  • Finish: ID:RAW=0.8/OD:POL=1.0
  • Connection Type: Weld ends
  • Standard: ISO 2852
  • Design: 1.5xD
  • Item Weight: 0.18
  • Country of Origin: China

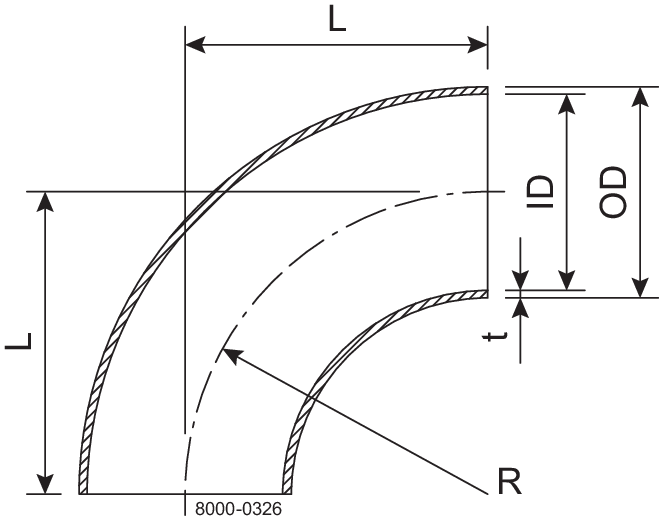

L: 76.00
R (mm): 76.50
OD/ID x t: 51.00/48.60 x 1.20
OD1/ID1 x t1: 51.00/48.60 x 1.20
